2 Cubic Meter Concrete Mixer

The 2 cubic meter concrete mixer is a device with a large workload in the concrete batching plant with mixing capacity 2m3 per batch. In the twin shaft forced concrete mixer JS series, the concrete mixer 2 cubic meter is JS2000 concrete mixer. When choosing a js2000 concrete mixer, whether it matches the concrete batching plant used depends on the parameters of the js2000 concrete mixer.

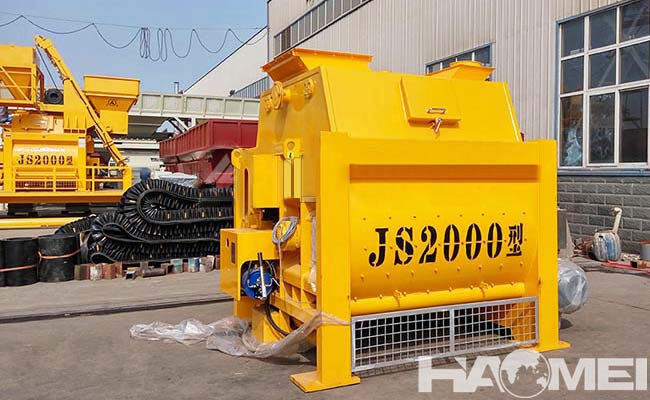

JS2000 concrete mixer discharges about 2 cubic meters at a time, also known as 2 cubic meter concrete mixer. The discharge cycle of JS2000 mixer is about 60S. The mixing host of the HZS120 concrete batching is this JS2000 concrete mixer. It has higher degree of automation, better mixing quality, higher efficiency, lower energy consumption, lower noise, convenient operation, faster unloading speed, long service life of liner and blades, convenient maintenance, etc. It is suitable for mixing dry hard concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and mortar in large, medium and small prefabricated component factories, roads, bridges, water conservancy, ports, docks and other industrial and civil construction projects.

Composition of 2 cubic meter concrete mixer (JS2000 concrete mixer):

1, Stirring system: The stirring system is composed of motor, pulley, reducer, open gear, mixing drum stirring device, oil supply device and so on.

2, Feeding system: The feeding system is composed of hoisting mechanism, feeding gantry, hopper, feeding nozzle and so on.

3, Water supply system: The water supply system is composed of water pump, throttle valve, cleaning device and spraying device.

4, Unloading system: The unloading system is composed of unloading six, air pump, reversing valve, air distribution valve, cylinder, electrical and other mechanisms.

5, Electrical system: The electrical control circuit is equipped with air switch, fuse, thermal relay, and has the functions of short circuit protection and overload protection.
