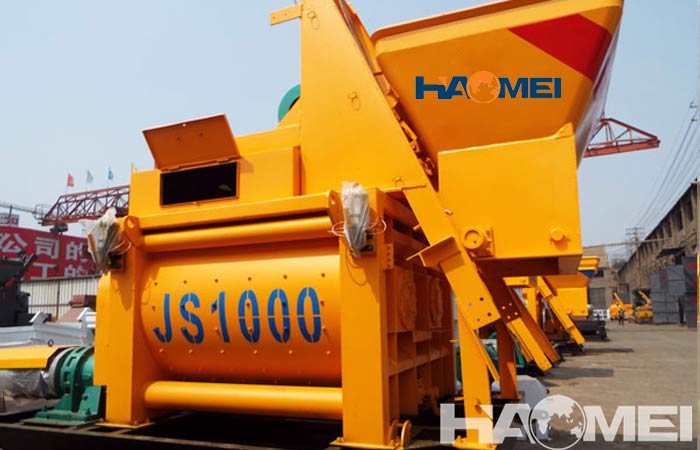

Concrete Mixer 1000L

Concrete mixer 1000 L is a widely used concrete mixing equipment, which is mainly used for mixing concrete, mortar and other building materials.

Here are the detailed information about 1000 L concrete mixer:

1, Product model number and theoretical production capacity:

The product model of a concrete mixer 100 liter is usually JS1000, which stands for its discharge capacity of 1000 liters. The theoretical production capacity is usually 60 cubic meters per hour (m³/h), but the actual production capacity may be slightly different depending on the material characteristics and mixing efficiency. So the related concrete batching plant models are HZS50 and HZS60 concrete batching plant.

2, Structure and Composition:

JS1000 concrete mixer is a double horizontal shaft forced concrete mixer, which is composed of feeding, mixing, discharging, water supply, electric, cover, chassis, outrigger gears and other parts. The mixing blades in the mixing cylinder form a spatial intermittent spiral belt structure, which can produce three-dimensional mixing along the radial and axial direction, and push, rub, squeeze and other comprehensive effects on the materials to achieve high homogeneity mixing effect.

3, Performance parameters:

Feeding capacity: usually 1600 liters.

Rotating speed of mixing cylinder: about 25 rpm.

Maximum particle size of aggregate: 80mm.

Mixing motor power: usually 18.5kwx2.

Lifting motor power: 11kw.

Water supply precision error: ≤2%.

4, Application field:

It is mainly applied to large and medium-sized prefabricated component factories and industrial and civil construction projects such as highways, bridges, water conservancy, wharves and so on.

It can mix plastic, dry-hard, light aggregate concrete and all kinds of mortar and grout.

5, Product Advantage:

It has the advantages of high degree of automation, good mixing quality, high efficiency, low energy consumption, low noise, convenient operation and fast discharging speed.

The degree of concrete collapse in the mixer can be monitored and changed at any time to ensure the quality of concrete.

A variety of mixing knife angle to meet the different needs of customers, mixing quality is more outstanding.

6, Operation standardization:

The operator should be specially trained and obtain the special work type operation license before going to work.

Before working, the machine should be idling and debugging to ensure the normal operation of the equipment.

The feeding order is usually stone-cement-sand, and the hopper should not be overloaded.

The hopper should be lowered to a low place immediately after unloading.

7, Price range:

Depending on the brand, model and configuration, the price of a 1000 L concrete mixer can vary. Generally, the price range is from several thousand dollars to tens of thousands of dollars.

Please note that the above information is for reference only, and specific parameters and prices of concrete mixer 1000l may vary depending on brand, model and region. When purchasing or using, it is recommended to refer to the product manual or consult a professional.
