Concrete Mixer Machine Rate

Haomei Machinery offer very competitive concrete mixer machine rate while ensure high quality and good service of concrete mixer equipment. Among the concrete mixers, there are two special models, which can be used as the host in two different concrete mixing plants, namely the js1000 forced concrete mixer and the js1500 forced concrete mixer. Among them, the js1000 concrete mixer is the mixing host of hzs50 and hzs60 concrete mixing plants, while the JS1500 concrete mixer is mainly the mixing host of hzs75 and hzs90.

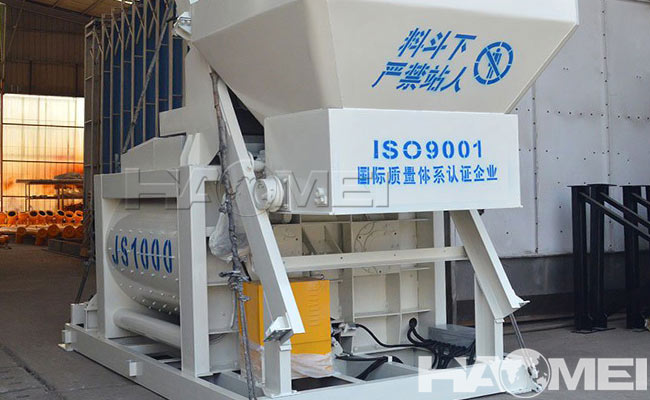

The parameter table of JS1000 concrete mixer machine are:

Model: JS1000

Discharge capacity: 1000L

Feeding capacity: 1600L

Theoretical production capacity (m3/h) (based on the mixing station): 50-60

Maximum aggregate size (pebbles/gravel): 60/80

Working cycle time (S): 72/60

Overall weight (kg): 8700

Dimensions (length X width X height) (mm): 4320X2200X3300

Mixing blade:

  -Speed: 29.6r/min

  -Quantity: 2X8

Stirring motor

  -Model: Y180M-4

  -Power (kw): 2X18.5

Winch motor

  -Model: YEZ160L-4

  -Power (kw): 15

Water pump motor

  -Model: 80JDB-45

  -Power (kw): 3

In fact, JS1000 concrete mixer machine rate is actually the mixing host of the concrete mixing plant hzs50 station and hzs60 concrete batching plant, but the feeding method is different. The Hzs50 type concrete mixing plant is a common small concrete mixing plant, which uses a lifting hopper for feeding. In this type of concrete mixing plant, the theoretical output per hour of the JS1000 forced concrete mixer is 50m3/h, and the concrete batching machine used is PLD1600 single scale, hzs50 type concrete batching plants are often used in rural and township construction projects. At the same time, it is also an efficient, energy-saving and environmentally-friendly mixing plant developed by Haomei Machinery absorbing domestic and foreign technology and combining our own years of equipment manufacturing experience, and at the same time, it has improved its service life.
