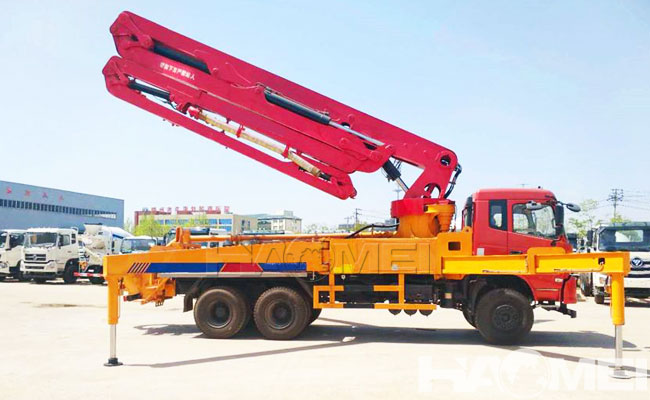

Ready Mix Concrete Boom Pump

Ready mix concrete boom pump is a highly efficient equipment for delivering ready-mixed concrete, usually mounted on a truck chassis, which delivers concrete precisely to the specified location through multiple sections of retractable and foldable boom, applicable to the construction of high-rise buildings, bridges and other complex structures. It integrates advanced hydraulic system and control system, which can realize remote operation and automatic operation, and significantly improve the construction efficiency and safety.

The model parameters of ready mix concrete boom pump mainly include boom length (e.g., 28 m, 32 m, 42m, 48m, 52 m, etc.), pumping capacity (commonly 50 m³/h to 150 m³/h), pumping pressure (e.g., 10 MPa to 16 MPa), engine power (usually between 100 kW and 200 kW), and the weight of the whole machine (ranging from 15 to 50 tons), and the different models are adapted to different scales and types of construction projects. Different models are suitable for different scales and types of construction projects.

The working principle of ready mix concrete boom pump truck is as follows:
- The concrete is unloaded from concrete transit mixer into the concrete boom pump truck's hopper.
- The pumping system uses the power of the chassis engine to pressurize the concrete in the hopper and send it into the pipe, which is attached to the boom.
- The operator controls the movement of the boom to deliver the concrete pumped by the pumping system directly to the pouring point.

The main features and advantages of ready mix concrete boom pump including:
- High efficiency: the rmc boom pump can deliver concrete quickly and continuously, improving construction efficiency and reducing labor and time costs.
- Flexibility: Equipped with a telescopic boom, it can operate flexibly in complex construction environments and easily reach high-rise buildings or hard-to-reach areas.
- Precise Positioning: The concrete boom pump can accurately control the delivery position of concrete to ensure even pouring of concrete and reduce waste.
- Reduced manpower demand: Through mechanized operation, it reduces the need for manual handling of concrete and improves construction safety.
- Wide range of applications: suitable for all sizes and types of construction projects, including residential, commercial, bridge and infrastructure projects.

Ready mix concrete boom pump is a kind of concrete conveying equipment with high efficiency, strong applicability and high degree of automation, which can effectively improve the efficiency and quality of concrete construction, and is an indispensable and important equipment in modern construction projects. When choosing, construction demand, equipment performance, price and other factors should be fully considered in order to purchase the most suitable equipment.
