Small Mobile Concrete Batching Plant

The common models of YHZS small mobile concrete batching plant include YHZS25, YHZS35, YHZS50, etc., where "Y" stands for mobile, "H" stands for concrete, "Z" stands for station, and the number stands for the theoretical production capacity of the concrete batching plant, i.e. the number of cubic meters of concrete that can be produced per hour. For example, YHZS25 means that the mobile concrete batching plant can produce 25 cubic meters of concrete per hour.

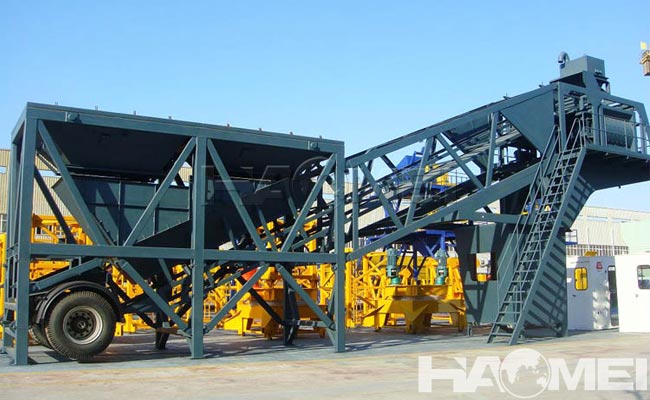

YHZS small mobile concrete batching plant has a compact structure and reasonable design, mainly including the following parts:

- Host chassis: the shape is similar to a cantilever, containing a traction pin for trucks to tow the mobile mixing plant and a parking bracket. The chassis is equipped with a concrete mixer, powder weighing, water weighing and liquid additive weighing devices, and there is also an inspection and maintenance platform around.

- Mixing machine: JS series forced double horizontal shaft mixer is usually used, similar to the fixed mixer, with strong mixing capacity and rapid mixing.

- Batching system: located at the back end of the mobile mixing plant, the upper part is the aggregate batching bin, the lower part is the aggregate metering and conveying system, and there are tires installed at the bottom for easy movement.

- Belt conveyor: the truss structure connecting the main chassis and the aggregate batching frame, with the belt conveyor frame installed inside, so that the main frame, belt frame and batching frame of the mixing plant are connected into one, forming the main structure of the whole mobile concrete mixing plant.

- Operation and control room: located at the bottom of the conveyor belt conveyor, it is the control center of the whole mixing plant. Under the working condition, the control room is the front pivot point of the whole concrete mixing plant; before transportation, the control room will be folded and stored in the inner space of the stand, which is convenient for transit transportation.

- Peripheral parts: including screw conveyor and cement silo, etc. When it is necessary to transfer the site, it does not need to be disassembled into fragmented parts and can be disassembled and transported as a whole.

Advantages of YHZS small mobile concrete batching plant:

- High flexibility: YHZS small mobile concrete mixing plant does not require cumbersome infrastructure construction and can be quickly deployed to any desired location, which is suitable for temporary projects or projects that require frequent change of construction sites.

- Compact structure: The whole set of machines and equipment is compact, bringing together the whole process of feeding, weighing and mixing for concrete manufacturing on a trailer-type chassis, with a small footprint and quick assembly.

- Easy operation: the computer software operation interface is simple and clear, the working performance is stable and reliable, applicable to work in various harsh environments.

- High-efficiency mixing: Adopting double horizontal shaft forced mixer, it has strong mixing capacity and rapid mixing, suitable for mixing various kinds of concrete.

- Cost saving: compared with the fixed concrete mixing plant of the same model, the price of mobile mixing plant is usually lower, and the time and cost of transferring, installation and commissioning are also greatly reduced.

- Easy maintenance: the equipment is reasonably designed and easy to repair and maintain, which reduces the maintenance cost.

To summarize, YHZS small mobile concrete batching plant is widely used in building construction with its advantages of high flexibility, compact structure, easy operation, efficient mixing, cost saving and easy maintenance.
