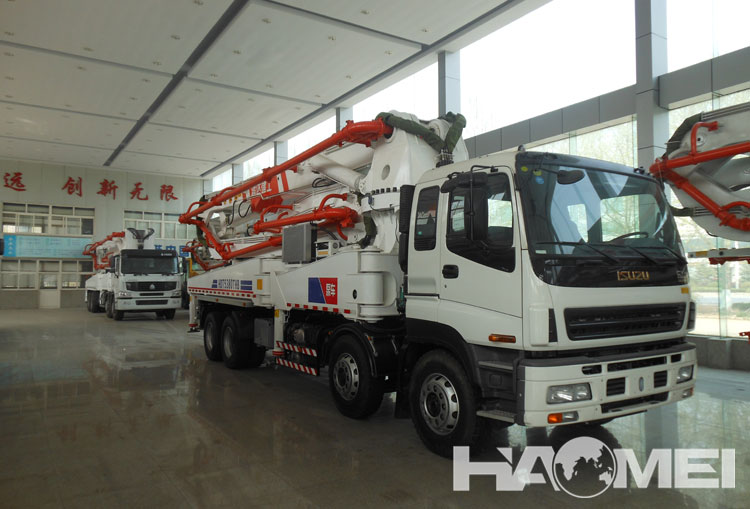

Small Concrete Boom Pump

With the development of rural construction, the popularity of small concrete boom pump continues to increase. This is closely related to the flexible use of small concrete pump trucks. Generally, 38 meters concrete pump truck is the most commonly used for rural house construction. It has low requirements for the site and is relatively flexible in use. The price is also satisfactory, and the configuration mainly consists of original imported components.

1. The Φ230 conveying cylinder is equipped with a Φ125 oil cylinder, which has low requirements for concrete. It can meet the needs of low-pressure and large-displacement pumping, and can also replace the small concrete boom pump for high-pressure and small-displacement needs.

2. The dual-purpose synchronous lubrication system is driven by the swing valve during operation and can be manually lubricated by pushing the manual joystick when not working. The circulation port can lubricate the bearings in the hopper, and the synchronization port can lubricate the pumping pistons, effectively improving the piston lifespan.

3. The engine speed is automatically controlled, corresponding to the displacement. The speed is low when the displacement is low and high when the displacement is high. This speed range is where the engine torque is maximized, resulting in high fuel economy.

What are the five points to note in the construction of a 32 meter small concrete boom pump?

1. Check the laying of the fabric equipment and avoid collision with or direct placement on the template structure, template on the fabric rod, or load-bearing structure. It should be fixed in combination with the actual situation of the construction site.

2. Carry out a thorough inspection of the reinforcement framework. Before pumping with the concrete pump truck, combine the drawings with the construction site and carefully check the placement, specifications, and quality of the reinforcement.

3. Check the stability of the small concrete pump truck. If it is unstable, it will generate periodic pulses. If the small pump is not firmly placed on the foundation and there is still a slope issue, it may cause poor sliding during the construction process, seriously affecting the progress of the project.

4. Analyze the pumping time of the concrete pump truck. Currently, the concrete market has three standards based on pumping time. Some people divide the pumping time into total pumping time and forward pumping time. Accurate time recording can ensure the safety of the small concrete pump truck during delivery.

5. Pay attention to the issue of the small concrete boom pump overturning. When the small pump is deployed, the weight of the entire pump truck is supported by four legs. If the construction site is not level or the supporting area of the legs is not compact enough, resulting in uneven ground subsidence, the pump truck legs may experience unequal force and tip over.
