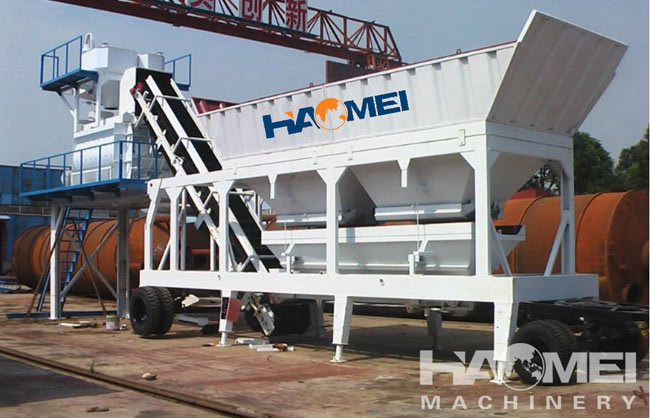

Portable Concrete Batch Plant

High-quality product quality is the guarantee for the durability of the portable concrete batch plant equipment. Regular and correct maintenance is the continuation of the excellent performance of the portable concrete batching plant equipment. These are inseparable from the daily equipment maintenance. So, what kind of equipment maintenance can optimize the performance of equipment components?

A, The concrete batching machine of portable concrete batch plant

The concrete batching machine is an important unit of the entire portable concrete batching plant equipment, which is mainly used to store aggregates, measure accurately and supply aggregates in time. The usual storage capacity of the concrete batching machine is 1.25-2.5 times the rated production capacity of the mobile concrete batching plant equipment, plus the timely feeding of the conveyor belt to ensure the continuous and normal operation of the portable concrete batching plant. Accurate metering of ingredients to achieve a reasonable gradation of aggregates to ensure comprehensive performance requirements of concrete.

In each work shift, check whether the door opening limit device is loose, so as not to affect the accuracy of the drop value; check whether the vibration motor bolt is loose, and whether the silo screen is blocked; check whether each idler has a jam/non-rotating phenomenon; check the belt Whether there is deviation; check whether the bolts of various parts are loose; After 500 working hours, add 5-10ml grease to the bearing seats at both ends of the main and driven rollers. Note: The bearing seat may be full when the pressure is relatively high when refueling. Please drain the old oil and add it to avoid hitting. burst.

B, Inclined belt conveyor of portable concrete batch plant

Aggregate conveyor belt conveyor is a kind of conveying equipment with large conveying capacity, low operating cost and continuous conveying. It is suitable for conveying ordinary bulk materials with a loose density of 500~2500kg/m3. For aggregate conveyors working in special environments, such as heat resistance, cold resistance, corrosion resistance and other conditions, corresponding protective measures should be taken.
