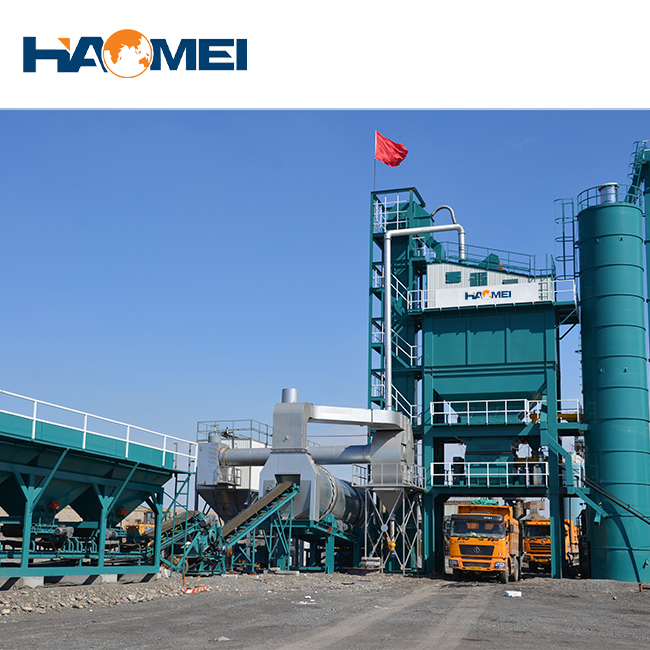

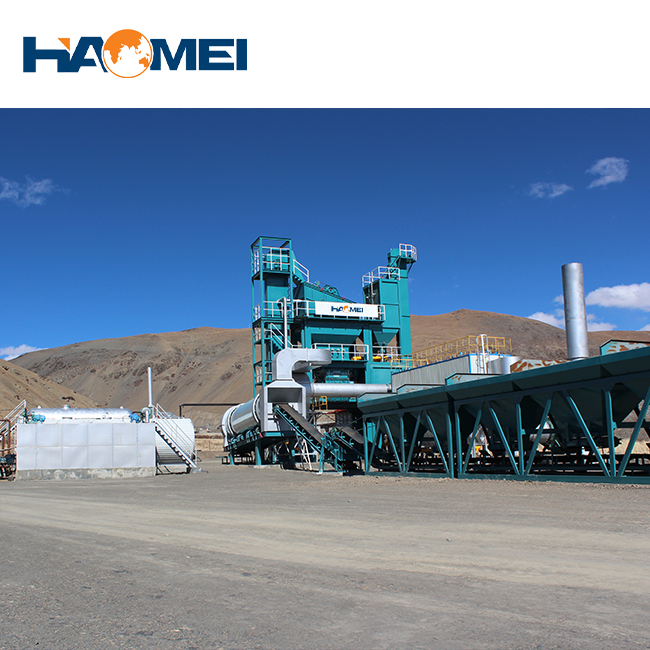

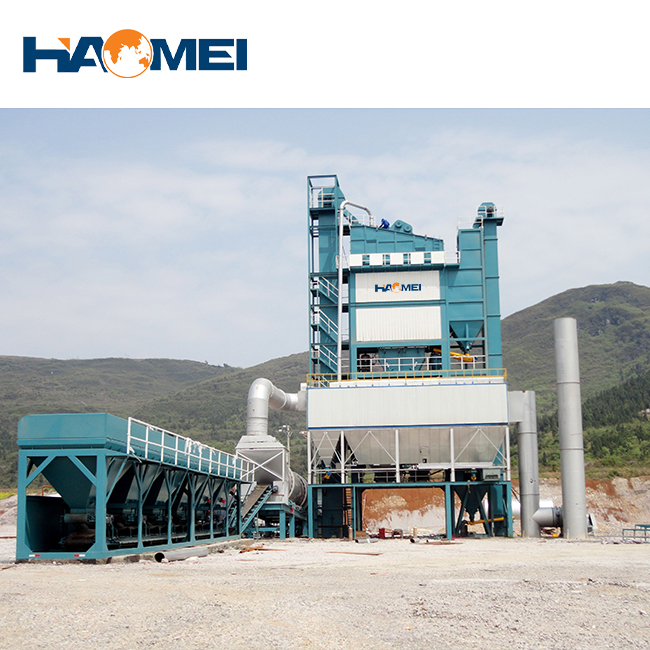

An lb1500 asphalt mixing plant has a capacity of 90 mt to 120 mt (90t, 100t, 110t, 120t). The lb1500 asphalt batching plant has high automatic level, accurate measurement, good reliability and long service. As a newly developed hot mix asphalt plant combining technological advantages of China and overseas, HM lb1500 asphalt mixing plant serves as an ideal equipment for highway and road construction as well as maintenance.
Technical parameters of the whole lb1500 asphalt batching plant
|
Model |
LB1500 |
|
Aggregate weighing accuracy (%) |
±0.5 |
|
Powder weighing accuracy (%) |
±0.3 |
|
Asphalt weighing accuracy (%) |
±0.2 |
|
Productivity(t/h，water content≤5%) |
90-120 |
|
Hot mixed asphalt temperature (°C) |
140-180 |
|
Oil aggregate ratio of mixed asphalt (%) |
3-7 |
|
Total power (Kw) |
350 |
|
Plant installation type |
Modular |
|
Fuel (optional) |
Diesel, standard heavy oil, pulverized coal |
|
Control type |
Computer+PLC control，full-automatic, semi-automatic, manual |
Technical parameters of the main parts of HM lb1500 asphalt batching plant
|
Model |
1500 |
|
Conveyor belt width(mm) |
600 |
|
Feeding machine capacity(t/h) adjustable |
60-200 |
|
Quantity of feeding machine hoppers |
4 |
|
Capacity of feeding machine hoppers |
4/32m3 |
|
Heating tank diameter (m) |
φ1.85 |
|
Heating tank length (m) |
7.5 |
|
Heating tank productivity (t/h) water content 5% |
140 |
|
Hot material lifter capacity (t/h) |
140 |
|
Hot material vibration screen capacity (t/h) |
140 |
|
Mixing tank capacity (kg) |
1500 |
|
Mixing time (h) adjustable |
30-60 |
|
Mixed asphalt silo capacity (t) |
100 |
|
Mixed asphalt silo discharge height (m) |
3.5 |
|
Control room size (length×width) |
2.6m×4m |

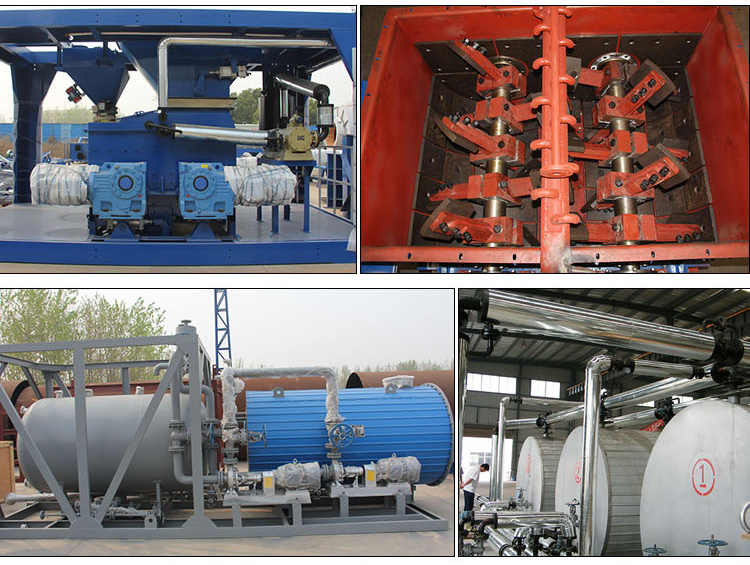

Main parts of the lb1500 asphalt mixing plant configuration
Control system: The independently developed PC+PLC control system is stable and easy in operation.
Cold material supply system: The uniquely designed structure has the effect of preventing segregation, reducing resistance and avoiding abnormal belt wear.

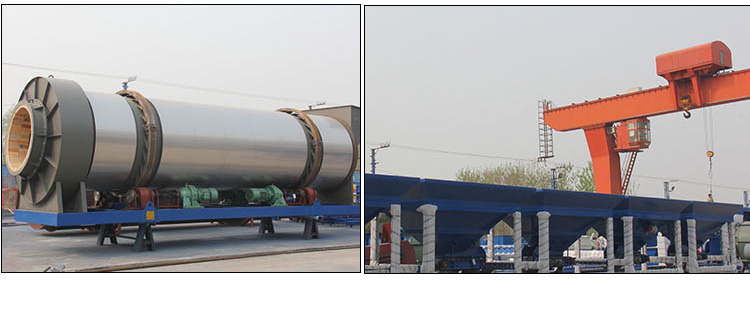

Drying drum: Armed with the integrated thermal system technology, it has the best thermal efficiency while ensuring stable work.
Mixing building: The combination of precise metering and high-efficiency mixing technology is the guarantee for the production of high-quality asphalt concrete.
Dust removal system: Gravity and bag two-stage dust removal improves the exhaust smoke concentration to Greenman first level.
Pneumatic system: efficient, reliable, low noise, maintenance-free.
Asphalt supply system: heat-conducting oil heating, safe and efficient.
Diverse Hot mixed asphalt silo: side-mounted, integrated and horizontal finished product silos are available for choice.
Features of lb1500 asphalt mixing plant
1. With sophisticated modular design and integral steel structure foundation, the layout is more reasonable, and the disassembly-transport-installation is faster and more convenient.
2. The skirt-type feeding belt ensures a more stable and reliable feeding.
3. Superior drying drum material plate design and advanced self-developed combustion heating technology improve efficiency and reduce energy consumption.
4. The plate-chain type hot aggregate and powder lifting design improves the service life of the lifter. To
5. Asphalt mixing station plus high-rise hot aggregate silo design, increase the storage capacity of hot aggregate silo, put an end to the phenomenon of other materials, and increase output.
6. Using the world's advanced pulse bag dust removal technology, the smoke and dust emission is less than 20mg/Nm3, which meets the international high environmental protection standards. To
7. Fully automatic/manual control system with fault self-diagnosis feedback program, simple and stable operation.
8. Optimized design, while adopting hard-tooth surface reducer with high energy conversion rate, energy saving and high efficiency.
9. The core components adopt internationally well-known brand products, such as Siemens motors and electrical components, EBICO burners, Swiss METTLER TOLEDO load cells, etc., which reduce the failure rate of the equipment and extend the service life of the equipment. To
10. The product has passed the EU CE certification and Russia GOST certification, and the product fully meets the requirements of the European and American markets for quality, energy saving, and environmental protection.
