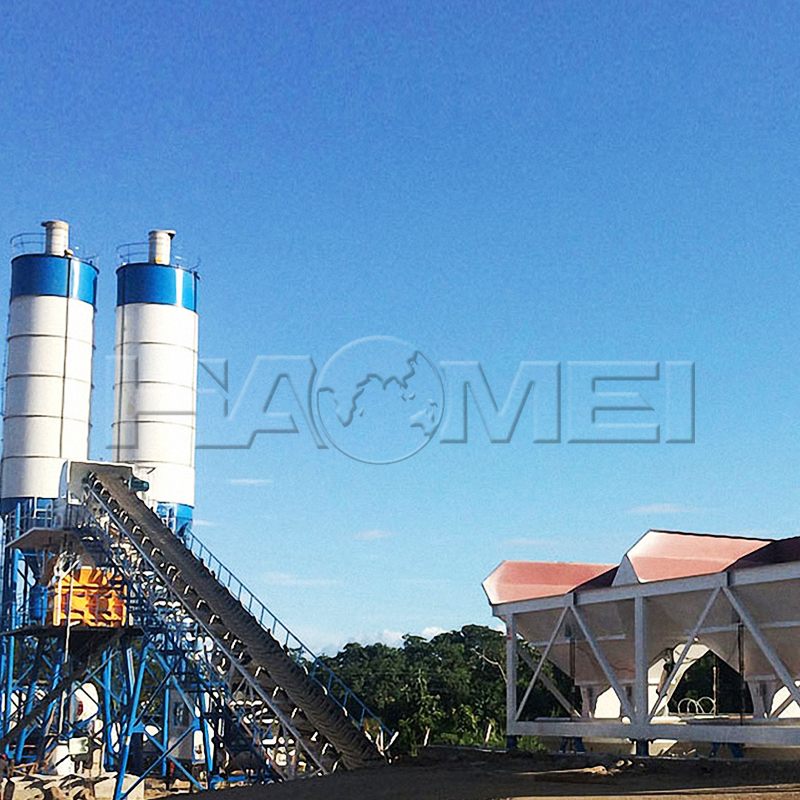

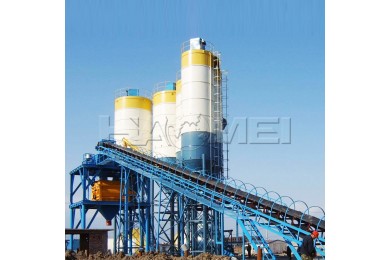

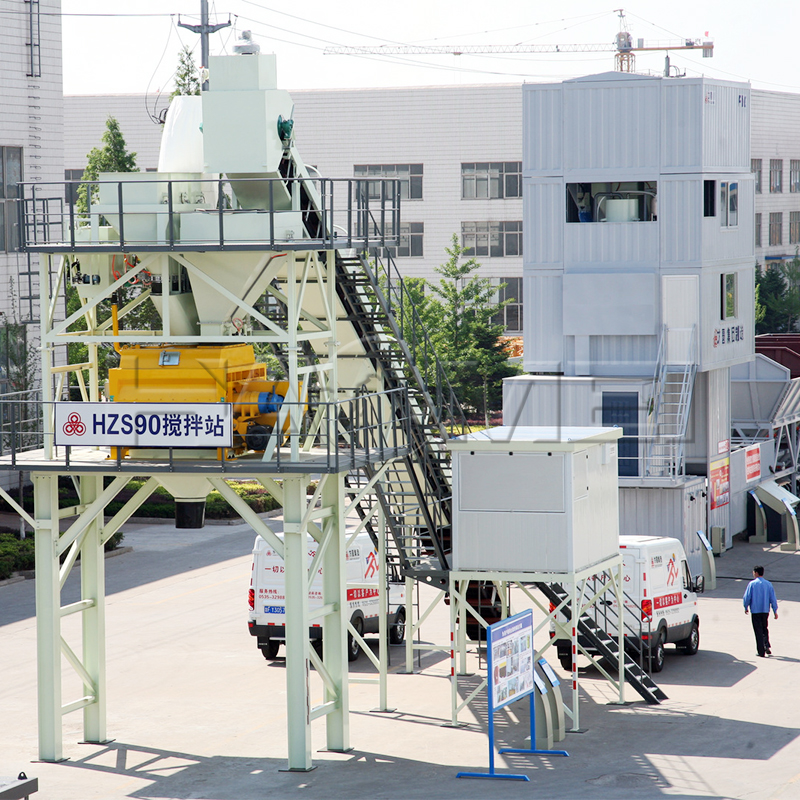

1. Description of HZS90 Concrete Batching Plant:
1. Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed
2. Mixing system choose the spiral mixing system
3. Scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
4. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
5. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying
6. Lubrication system is equipped with overvoltage warning and low oil level warning, safe and reliable
7. PC+PLC control system ensures the high reliability.
8. With its virtue of precise computation, it can meet the requirement of every high performance concrete.
9. Human-based intelligent control facilitates the operation greatly.
10. Structural members are durable, and most electric elements adopt world famous brands.
2. The Features of HZS90 Concrete Batching Plant:
1. The Productivity is 90m3/h
2. Suitable for large and medium size projects, dam, road and bridge.

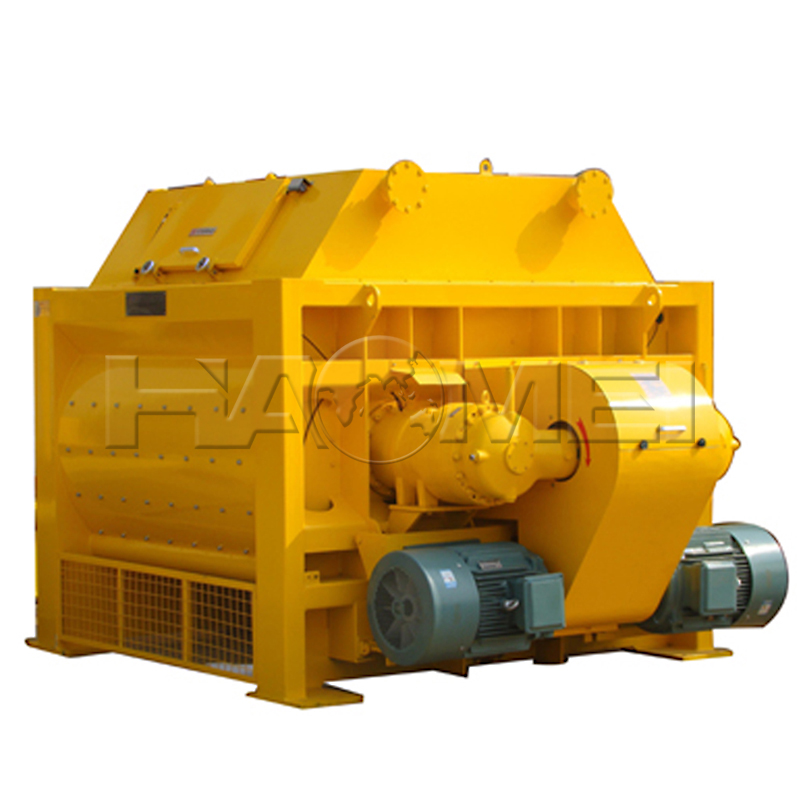

3. JS1500 twin shaft compulsory concrete mixer with high mixing performance.
4. Low noise, low energy consumption
5. Free training service and spare parts
3. The Technical Parameters of HZS90 Concrete Batching Plant:
|
Model |
HZS90 |
|
|
Specification |
Unit |
Value |
|
Productivity |
m3/h |
90 |
|
Capacity of Mixer |
m3 |
1.5 |
|
Mix Power |
kw |
44 |
|
Discharge Height |
m |
3.8 |
|

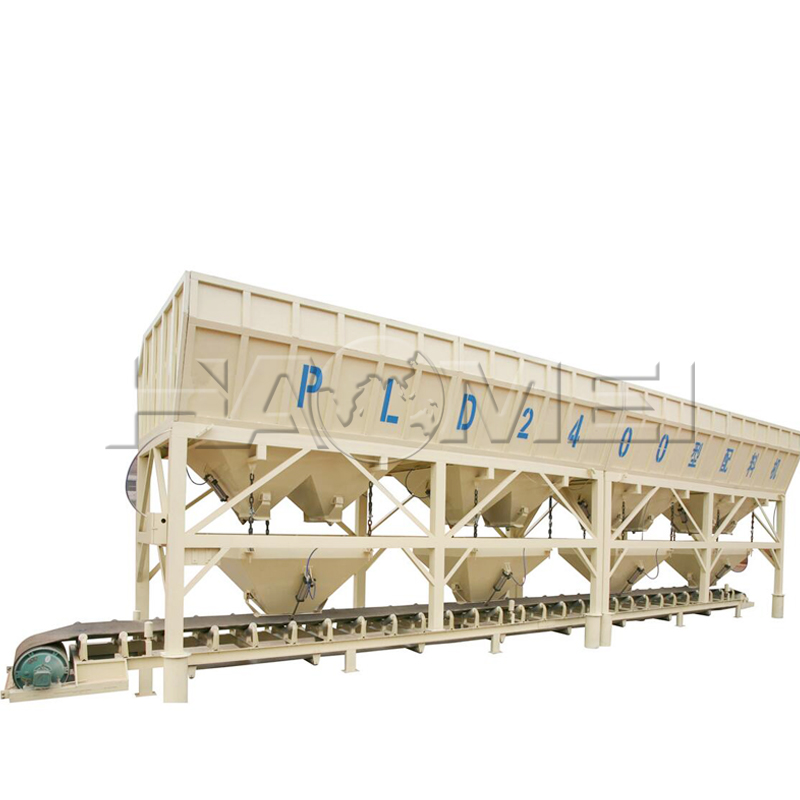

Aggregate Bin |
Quantity |
4 |
|
Aggregate Bin Capacity |
m3 |
2.4 |
|
Max. Weighing Value of Aggregate |
kg |
6000Kg |
|
Max. Weighing Value of Cement |
kg |
1000Kg |
|
Max. Weighing Value of Water |
kg |
500Kg |
|
Max. Weighing Value of Additive |
kg |
50Kg |
|
Aggregate Measuring Accuracy |
% |
±2% |
|
Water Measuring Accuracy |
% |
±1% |
|
Cement Measuring Accuracy |
% |
±1% |
|
Additive Measuring Accuracy |
% |
±1% |
|
Cement Silo |
_ |
Optional |
|
Cement Screw Conveyor |
_ |
Optional |
|
Cement Silo Capacity |
_ |
Optional |
|
Control Mode |
_ |
Auto/Semi Control |
|
|
||
