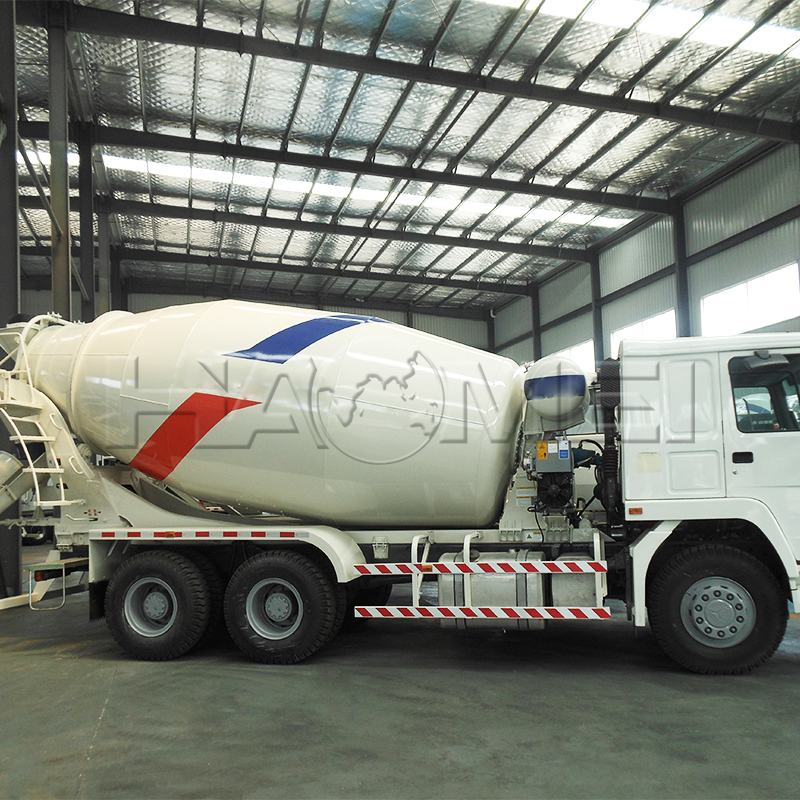

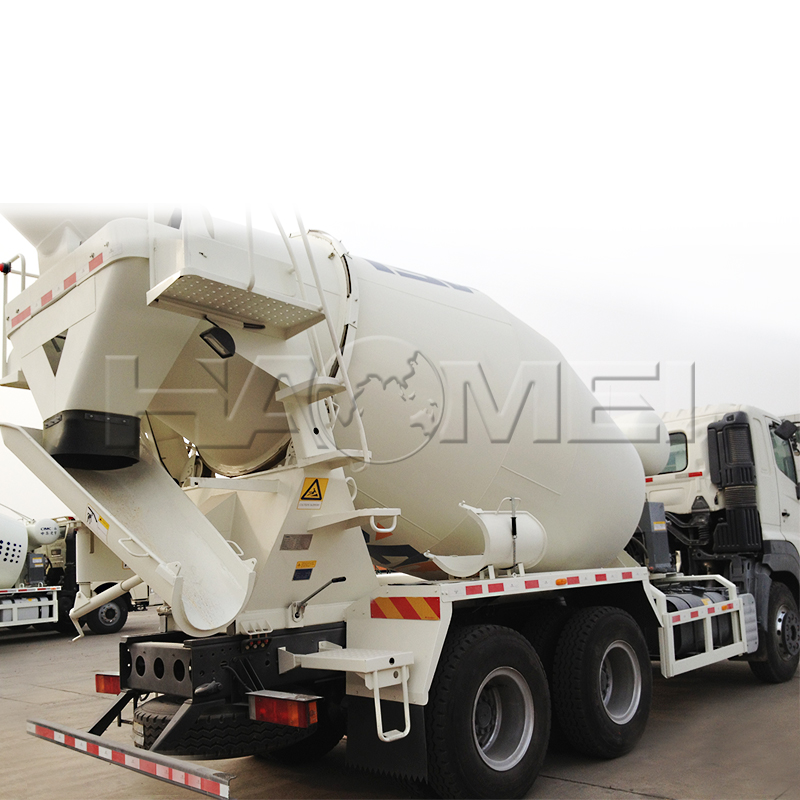

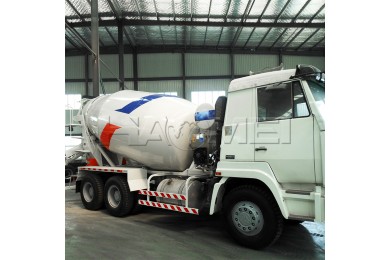

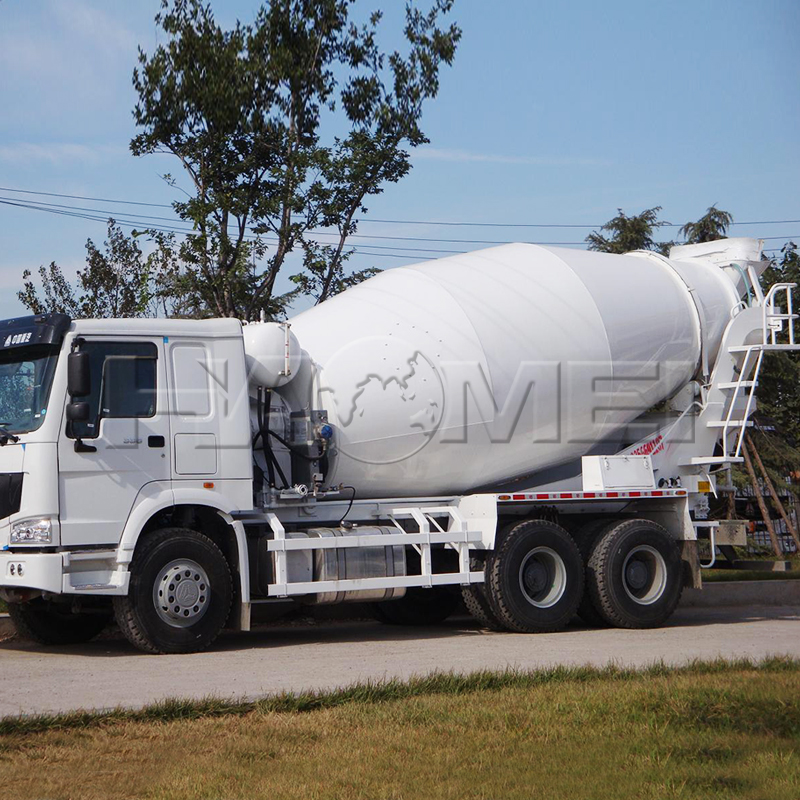

1. The Description of HM10-D Concrete Mixer Truck:
1. Haomei Concrete Truck Mixer has a wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed Concrete Works.
2. Haomei Concrete Truck Mixer includes many models such as 8m3, 9m3, 10m3, 12m3, 14m3, 16m3, and any tailor-made-for-mixer-truck special chassis both at home and abroad as supporting part are available to choose.
2. The Features of HM10-D Concrete Truck Mixer:
1.Wear-resistance and long service life
2.Low material residue
3.Excellent performance and convenient operation
4.Imported original hydraulic system
3. Technical parameters:
Model |
HM10-D |
|
Specification |
Unit |
Value |
Mixing Capacity |
m³ |
10 |
Tank Volume |
m³ |
17.05 |
Feeding Speed |
m³/min |
≥3.5 |
Discharging Speed |
m³/min |
≥3 |
Residual Ratio of Discharging |
% |
≤0.5% |
Water Supply System |
|
Air pressure |
Water Tank Volume |
L |
300 |
Overall Dimension |
mm |
9050*2496*3750 |

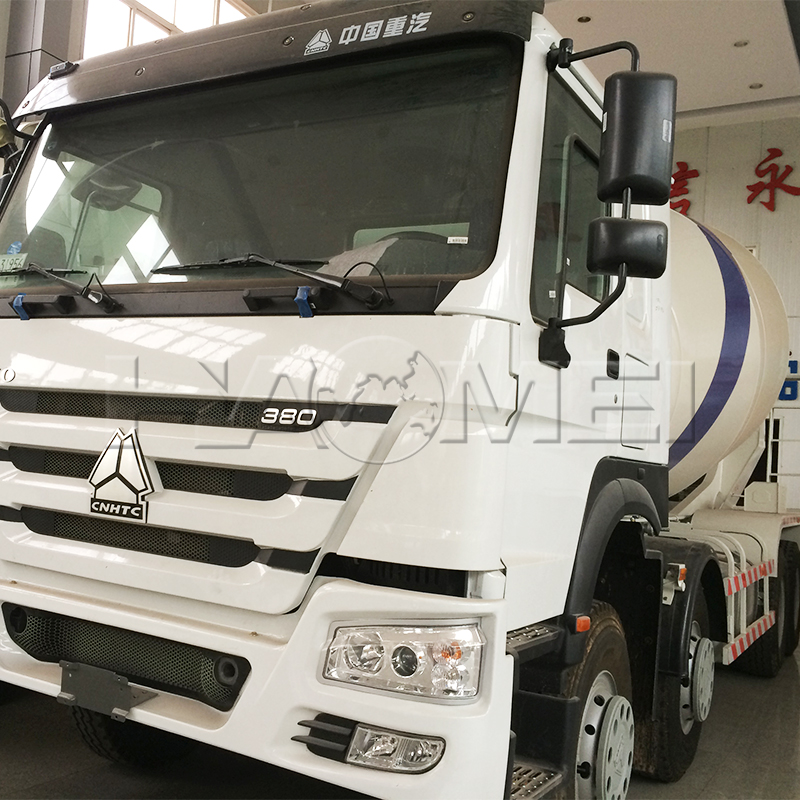

Chassis Model |
|
HOWO |
Clutch |
φ |
φ430 Monolithic dry type |
Min Ground Clearance |
mm |
314 |
Max Speed |
km/h |
90 |
Engine Max Output Power |
kw |
276 |
Emission Standard |
|
Euro Ⅲ |
Rated Load |
kgs |
13500 |
Overall Weight |
kgs |
25000 |
Wheelbase |
mm |
3825+1350 |
