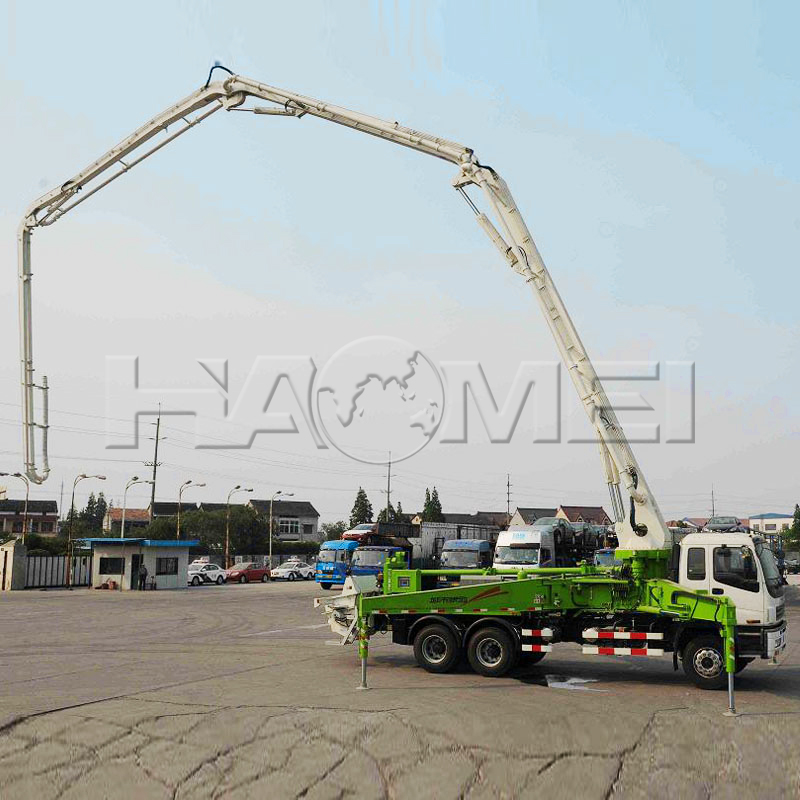

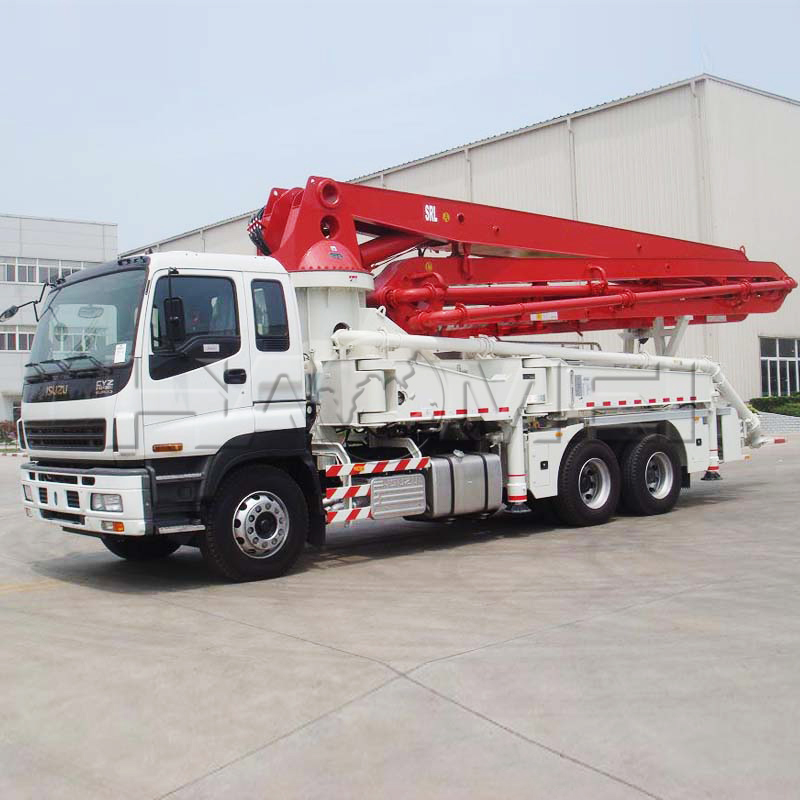

1. The Description of HDT5350THB-42/45 Concrete Pump Truck:
1. Using imported engine, with powerful and stable performance
2. The transmission system imported from Germany
3. Drive mode stability
4. Imported steering gear with flexible and reliable features
5. Use PLC controller and other imported components.
6. Remote control using the HBC products
7. Boom welding of high strength materials, to be reliable construction
2. The Parameters of HDT5350THB-42/45 Concrete Pump Truck:
|
HDT5350THB-42/45 Concrete Pump Truck |
|
|
Specification |
Value |
|
Output in theory(m3/h) |
125 |
|
Index of the pump carry capacity(Mpa.m3/h) |
586 |
|
Theoretic pumping pressure(Mpa) |
8.5 |
|
Bucket volume(L) |
700 |
|
Height of top surface of bucket(mm) |
1400 |
|
Model of distribution valve(S) |
S Valve |
|
Max. operation radius(m) |
38 /40.7 |
|
Max. operation height(m) |
41.8 / 44.7 |
|
Max. operation depth(m) |
29/31.3 |
|
Open height of boom(mm) |
8600 8495 |
|
Distance between front landing legs(mm ) |
8820 9550 |
|
Distance between rear landing legs(mm) |
8500 9550 |
|
Distance between front & rear landing legs(mm) |
8490 9190 |
|
Diameter of delivery pipe(mm) |
125 |
|
Length of hose pipe(m) |
3 |
|
Rotary range of boom |
365° |
|
Quantity of boom |
4.5 |
|
Rotary angle of each boom(°) |
92/180/180/240 91/180/180/180/270 |
|
Wire line control distance(m) |
33 |
|
Romote control distance(m) |
200 |
|
Max. speed(km/h) |
85/ 80 |
|
Min. turn radius(mm) |
12100 |
|
8800(m) |
10 |
|
Approach angle(°) |
16 |
|
Departure angle(°) |
11 |
|
Chassis model |
HOWO ZZ5307N4647C |
|
Wheel base between the first & the second axle(mm) |
4600 |
|
Wheel base between the second & the third axle(mm) |
1350 |
|
Front tread(mm) |
2022 |
|
Rear tread(mm) |
1830 |
|
Max. engine output power(kw) |
275(2200r/min) |
|
Max. engine output torque(n.m) |
1500 /(1100~1600 r/min) |
|
Max, gradient ability(%) |
37/ 35 |
|
Fuel consumption(L/100km) |
38/ 40 |
|
(××)out dimension(L×W×H)mm |
13650×2490×3960 |
|
Total weight(kg) |
35000 / 40000 |
