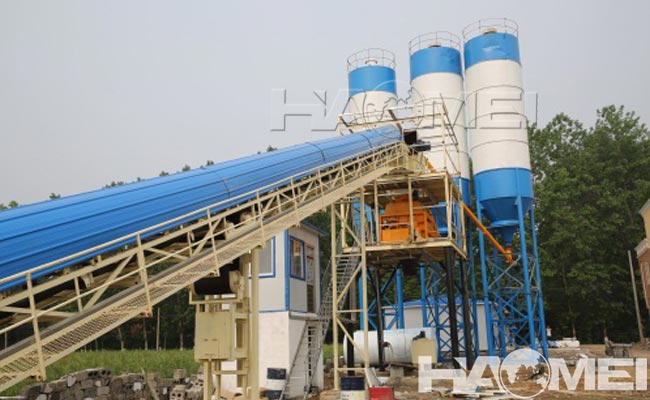

Batching plant ready mix

The batching plant ready mix is divided into four parts: sand and gravel feeding, powder (cement, fly ash, expansion agent, etc.) feeding, water and admixture feeding, transmission, mixing and storage. The working process is shown, the mixer control after the system is powered on, it enters the operation interface of human-machine dialogue, and the system performs initialization processing, including formula number, concrete grade, slump, production volume, etc. According to the weighing, each silo and measuring hopper are tested and output signal of empty or full material prompts the operator to determine whether to start the mixing control program. Start the sand and stone belt motor to feed the metering hopper; open the butterfly valve of the fly ash and cement tank, and start the screw motor to transport the fly ash and cement to the Metering hopper; open the control valve of the water silo and admixture pool to make water and admixture flow into the metering hopper. After the metering meets the set requirements of concrete batching plant,  open the metering hopper door, and the ingredients enter the activated mixer for mixing, and turn on the mixer at the set time The door, the concrete enters the concrete mixer truck that has received the material.

The technical requirement of batching plant ready mix are:

1, Each cylinder, control valve and motor operate according to the requirements of the concrete mixing process, and the control of each cylinder, control valve and motor needs to be accurate, stable and reliable.

2, The control system has two working modes: automatic and manual, and the relationship between them is independent and restricting each other.

3, The system has good anti-interference ability and perfect alarm self-protection function.

4, Through communication with the computer, the system working status and fault alarm can be displayed.
