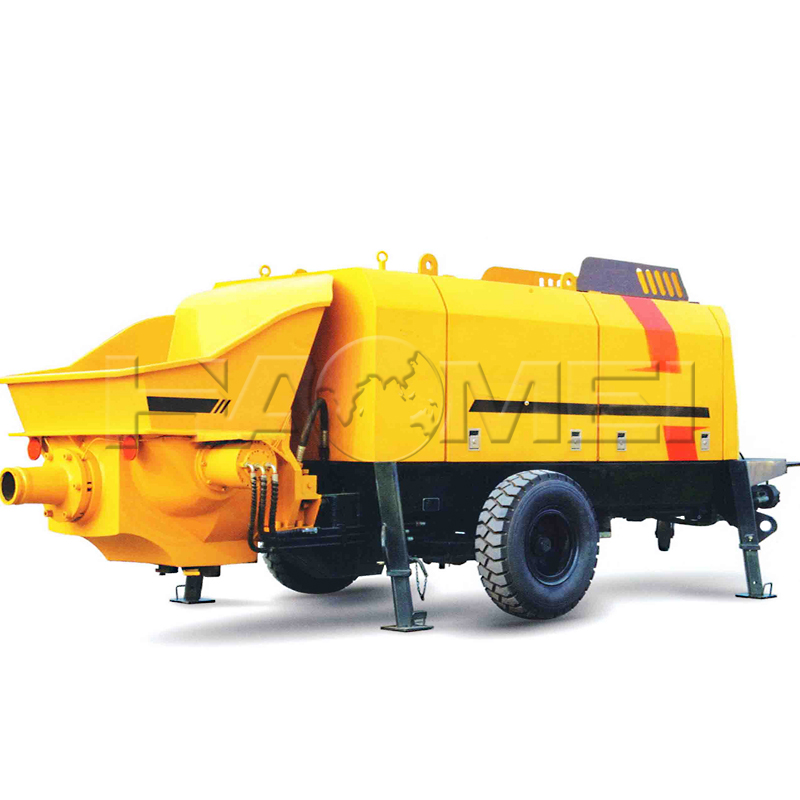

Development and characteristics of fine stone concrete pump

Fine stone concrete pump is specially developed for the floor heating construction which is suitable for fine stone concrete or mortar filling layer large area and high efficiency construction in floor heating engineering.

1. The oil pressure acts as the power, and the height can reach 100-120 meters, and the horizontal transportation is about 300-600 meters.

2. It can transport both cement mortar and concrete with stone. This machine integrates feeding, mixing, adding water, quantitative mixing, stirring and high-pressure conveying. The slurry is uniform and stable. The proportion of mortar, stone and cement can be adjusted freely. The main features of fine stone concrete mortar pump are: S pipe valve is used to change direction, with good sealing and long service life. S pipe valve is equipped with floating wear ring, automatic compensation wear;High outlet pressure;Pumping fine stone concrete;The hydraulic system adopts air cooling and heat dissipation. It is easy to use and does not need water supply.The utility model has the function of reverse pump to minimize pipe clogging. Equipped with automatic lubrication system, it can effectively extend the service life of rotating parts. The electrical part is controlled by PLC and has the best control characteristics. The electrical box is equipped with wired remote control handle for easy operation. Haomei concrete pump has low feeding height and is easy to be equipped into joint units. It is Equipped with guide wheel, which is easy to move and locate. The whole removable screen is easy to replace.
