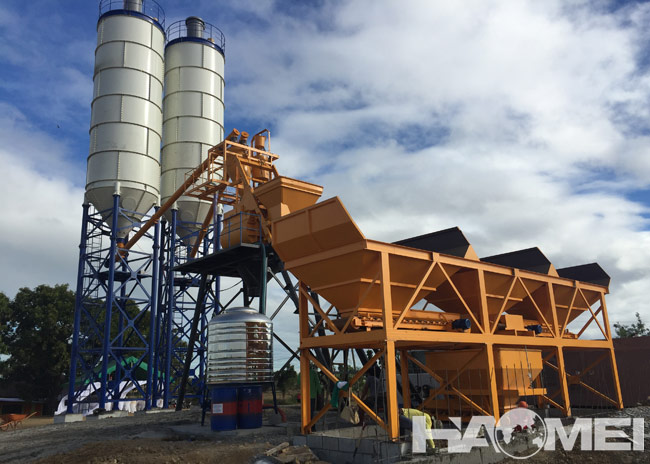

Hopper Feeding Concrete Batching Plant

A hopper feeding concrete batching plant is a type of concrete production equipment with core feature of use a hopper as the primary feeding device. Through its temporary storage and conveying functions, the hopper precisely supplies raw materials such as sand, gravel, and cement to the mixing system in a proportioned manner, ultimately producing qualified concrete.

Core Components of Hopper Feeding Concrete Batching Plant

The overall structure of a hopper feed concrete batching plant is similar to that of a conventional concrete batching plant, but the feeding system is its key differentiator. It consists of the following components:

1. Raw Material Storage System

- Silos: Used to store raw materials such as sand, gravel, cement, fly ash, and admixtures (aggregate silos for sand and gravel, sealed silos for cement/fly ash, and storage tanks for admixtures).

- Auxiliary Equipment: Aggregate silos are typically equipped with vibrators at the bottom to prevent clogging caused by sand and gravel, and level meters in each silo to monitor the remaining raw material level.

2. Hopper Feeding System (Core)

- Feeding Hopper: Temporarily stores raw materials discharged from the silo (primarily sand and gravel, with powdered raw materials often used in conjunction with a screw conveyor). Made of wear-resistant steel (such as Q355B), the hopper features a smooth interior to minimize residue and a sloped bottom (30-45°) to facilitate free-flowing material.

- Drive: Typically a hydraulic cylinder or electric winch, it is used to lift the hopper above the weighing system (vertical lift height typically 3-8 meters) or push it horizontally to a designated location.

- Gate Mechanism: A pneumatic or electric gate (gate or butterfly valve) is installed at the bottom of the hopper. The control system adjusts the opening degree and controls the feeding rate (implementing "coarse" and "fine" feeding).

3. Weighing System

- Weighing Hopper: Receives material from the hopper and uses a load cell (0.1% accuracy) to accurately weigh (sand and gravel tolerance ≤ ±2%, cement/admixture tolerance ≤ ±1%).

- Interlocking Control: Linked to the feed hopper gate, the gate automatically decreases its opening when the weighing approaches the target value, preventing overfilling.

4. Mixing System

- Mixer: Mostly a twin-shaft forced concrete mixer (JS series, such as the JS500 and JS750, are commonly used in small and medium-sized plants). It receives the weighed material, adds water and admixtures, and mixes it (mixing time: 60-90 seconds).

5. Control System

- A PLC control system with an integrated touchscreen interface allows for preset recipes (e.g., C30 and C40 concrete) and automatically coordinates the feeding, weighing, and mixing processes, providing real-time status display for each step (e.g., hopper position, weighing value, and mixing time).

Working Principle of Hopper Feed Concrete Batching Plant

The production process of a hopper type concrete batching plant can be divided into three stages: "Raw Material Delivery - Precision Weighing - Mixing Output," as follows:

1. Raw Materials Enter the Hopper:

Based on the production formula, the control system commands the raw material bin gate to open, allowing aggregates such as sand and gravel to fall by their own weight into the feeding hopper (the hopper volume is typically 0.5-2 m³, suitable for a single mixing volume).

2. Hopper Material Conveying:

Once the hopper is full, the drive (hydraulic/electric) is activated, raising the hopper above the weighing hopper (or pushing it horizontally to a docking position). At this point, the hopper gate aligns with the weighing hopper inlet.

3. Precision Feeding and Weighing:

The hopper gate opens quickly (for coarse feeding, 80%-90% of the target amount) and then slowly opens (for fine feeding) as it approaches the target value, ensuring that the weighing error is within the standard range. Powdered raw materials (cement, fly ash) are typically fed directly into the weighing hopper via a screw conveyor and weighed simultaneously with the aggregates.

4. Mixing Output:

After weighing is completed, the weighing hopper gate opens, allowing the material to enter the concrete mixer. Water and admixtures are added according to the formula. After mixing for the set time, the concrete mixer discharge port opens, and the concrete is discharged into a transport tanker or hopper.

Key Features of Hopper Feeding Concrete Batching Plant

The advantages and limitations of a hopper type concrete batching plant are related to its structure, as follows:

1. Advantages:

- High Space Utilization: The hopper is lifted vertically or conveyed horizontally over short distances, eliminating the need for long-distance belt or screw conveyors. The overall layout is compact (reducing floor space by 30%-50% compared to belt conveyors), making it suitable for construction sites with limited space (such as urban demolition sites and mountainous projects).

- Strong Adaptability: The hopper's smooth inner wall and the ability to be equipped with a vibration device make it more adaptable to sand and gravel with high moisture content (moisture content ≤15%) and less prone to sticking and clogging. The gate seals well, minimizing leakage (leakage rate ≤0.5%).

- Easy Installation: The modular design (the hopper, drive unit, and weighing system can be prefabricated) allows for quick on-site assembly (small to medium-sized plants can be installed in 1-3 days), making it suitable for temporary concrete mixing plants.

- Simple Maintenance: The hopper has no complex transmission components (such as conveyor belt rollers and idlers). Daily maintenance requires only cleaning the inner wall, checking the gate seals, and lubricating the drive unit. This results in low maintenance costs (annual maintenance costs are 20%-30% lower than belt-type systems).

2. Limitations:

- Low Production Efficiency: The hopper must complete a "load-lift-feed-reset" cycle, resulting in a long single feeding cycle (approximately 30-60 seconds). This makes it suitable for small to medium-sized production capacities (typically 25-50 m³/h, model HZS25-HZS50 concrete batching plant) but difficult to meet the continuous production requirements of large-scale projects (≥100 m³/h).

- Limited Lifting Load: The load-bearing capacity of the drive unit (such as the hydraulic cylinder) limits the hopper capacity. Overloading can easily lead to a reduction in lifting speed or equipment damage, making it unsuitable for single, large-scale feeding.

Applicable Scenarios of Hopper Feed Concrete Batching Plant

Based on the above characteristics, hopper-type feeder batching plants are primarily suitable for the following scenarios:

- Small and medium-sized projects: such as rural roads, small bridges, and civil buildings (villas, multi-story residential buildings), requiring a production capacity of 25-50 m³/h and limited site space.

- Temporary batching plants: For short-term construction projects (such as municipal maintenance and emergency projects), requiring quick set-up and dismantling, the modular hopper-type structure meets "install-and-use" requirements.

- High-moisture raw material applications: For construction projects during the rainy season, where high moisture content in sand and gravel can easily stick together, the hopper's inclined bottom and vibration mechanism reduce residue and prevent clogging.

Comparison with Other Feeding Methods

- Hopper Feeding:

Compact, easy maintenance, and minimal leakage. Limitations: Low efficiency (≤50 m³/h). Suitable for small and medium-sized plants and temporary construction sites.

- Belt Conveyor Feeding:

High efficiency (≥80 m³/h), continuous feeding. Limitations: Large footprint, belt wear, and difficulty cleaning. Suitable for large concrete batching plants and fixed sites.

Maintenance and Care Tips

To ensure stable operation of a hopper feeding system, focus on the following maintenance:

1. Hopper Body: Inspect the inner wall weekly for wear (replace if thickness has decreased by 1/3) and remove any residual material (especially during rainy season to prevent caking). Inspect welds monthly for cracks and repair if necessary.

2. Drive System: Change the hydraulic system oil monthly (use No. 46 anti-wear hydraulic oil) and check the cylinder seals for leaks. Lubricate the wire rope of the electric winch weekly to prevent rust. 3. Gate Mechanism: Check the gate opening accuracy daily (calibrate with the control system), clean any residual material from the gate to prevent blockage, and replace the gate seal monthly (if deteriorated).

4. Weighing System Interconnection: Calibrate the signal transmission between the hopper and weighing hopper quarterly (using weight calibration) to ensure a feed rate error of ≤±2%.

In summary, hopper feeding concrete batching plants, with their core advantages of "compactness, flexibility, and ease of maintenance," are suitable for small and medium-sized projects and temporary applications, offering an ideal balance between space, efficiency, and cost.
