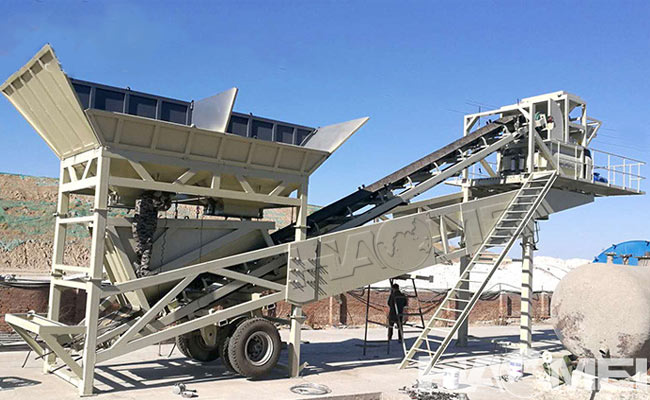

Mobile Concrete Mixing Plant For Sale

The mobile concrete mixing plant for sale is a kind of concrete batching and mixing equipment with strong move-ability and high automation degree. The mobile concrete batching plant is a concrete production equipment that concentrates the material storage, weighing, transportation, mixing, unloading and the entire automatic control system of the concrete batching plant in one trailer unit.

The components of the mobile concrete mixing plant for sale is:

1, Main engine chassis:

The mixing main engine chassis is in the shape of a cantilever wall. The chassis contains the traction rope for towing large trucks; the mixing device, the measuring scale for concrete and liquid admixture are placed on the chassis, safety fences are attached around it.

2, External parts:

The cement silos and screw conveyors. The prefabricated parts or transportation of external parts equipment are all prefabricated parts without disassembly, and can be transported and disassembled as a whole.

3, Control box:

Mobile concrete mixing plant, the control room is used as the front support point of the whole concrete mixing plant during operation, and the control room is folded and placed in the bracket when the site is changed and transported.

4, Main machine:

JS type forced concrete mixer is generally used, which can evenly mix and carry out fluidity and dry forced concrete.

5, Aggregate batching measurement verification:

The system is located at the rear end of the entire mobile concrete mixing plant, and the upper part is the aggregate storage hopper, which can be divided into 2 or 4, and is equipped with a telescopic plate to increase the amount of material, pneumatic operation in sequence, aggregate The measurement adopts various material accumulation measurement verification methods. The bottom is equipped with a walking rear axle and frame supports used in operation.

6, Belt conveyor:

The connect the chassis of the main engine and the aggregate batching frame, and erect the conveyor belt on the bracket to form the main structure of the mobile concrete mixing plant.

Being a project-based construction company, the mobile concrete mixing plant for sale allows for great flexibility and significant overall cost savings. Because of these projects, mobile concrete batching plants are most favored by construction companies.
