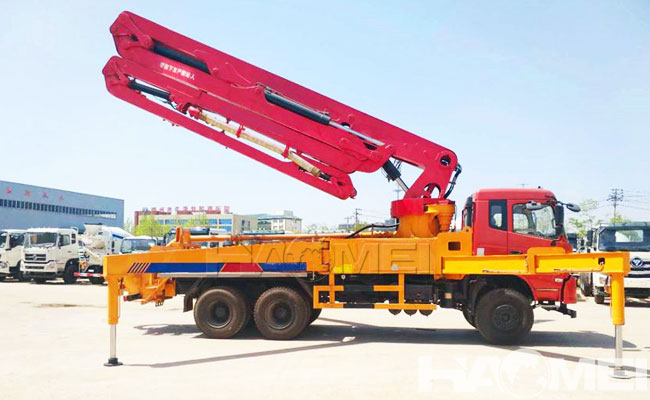

Small Truck Mounted Concrete Pump

The specification configuration of small truck mounted concrete pump includes many parts such as pumping system, hydraulic system, boom system and so on. Different specifications of concrete boom pump trucks are different in terms of performance, usage and price. Generally speaking, the specifications of truck mounted concrete pump are mainly determined according to the project demand and construction conditions, such as the maximum theoretical conveying capacity, the maximum outlet pressure of concrete, the rated working pressure, the pumping frequency, the hopper volume, the form of distribution valves, the cylinder bore×stroke, the concrete cylinder bore×stroke, the maximum height of the boom, the maximum radius of the boom, the maximum depth of the boom, the slewing angle, the number of boom joints, the length of the boom, the diameter of the conveying pipe, the end of the boom length, conveying pipe diameter, end hose length and other parameters.

Specifically, the common small truck mounted concrete pump specifications are htd5401thb-48, htd5401thb-52, etc., of which the maximum theoretical conveying capacity of htd5401thb concrete boom pump truck is 170/120 m3/h, the maximum outlet pressure of concrete is 8.3/12 MPa, the rated working pressure is 35 MPa, the pumping frequency is 25/18.5 min, the rated working pressure is 35 MPa, the pumping frequency is 25/18.5 min, the hopper volume is 600 L, the loading height is 1540 mm, the hydraulic system is open, the distribution valve is S pipe valve, the cylinder bore×stroke is φ150×2100 mm, the concrete cylinder bore×stroke is φ260×2100 mm, the hydraulic oil cooling method is air-cooled, the recommended caving degree is 12~23 cm, and the maximum aggregate size is 40 mm. In addition, this model of concrete boom pump truck also has the structure form of 46X-6RZ, the maximum height of 46 m, the maximum radius of 42 m, the maximum depth of 32.6 m, the slewing angle of ± 270 °, the number of boom joints is 6, and the length of boom joints is 9400/8000/7800/8500/4800/3500 mm, etc. Various specifications and configurations.

When choosing the specifications of small truck mounted concrete pump, it is necessary to consider the specific project requirements and construction conditions, including construction area, floor height, conveying distance, terrain conditions and other factors. Also need to consider the performance of the concrete pump truck equipment, reliability, service life and price and other aspects of the comprehensive balance of factors.
