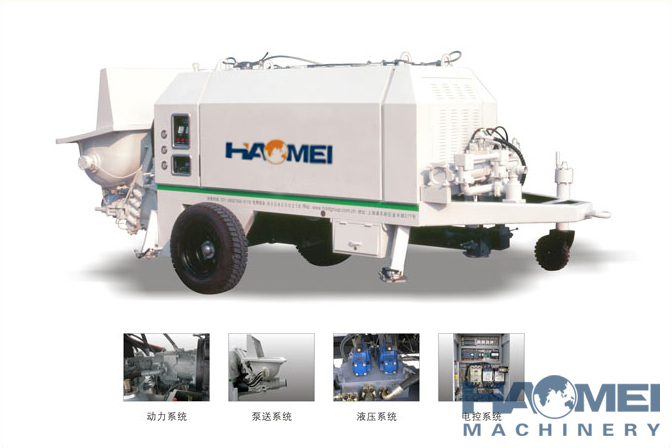

HBT Series Trailer Concrete Pumps

The HBT series trailer pumps have become the mainstream pumping equipment in overseas infrastructure markets because they have found a precise balance between conveying efficiency, operational reliability, and total life cycle cost. As a mature model in Haomei Machinery's export product line, with five key advantages , the HBT series concrete pump covers a complete displacement range from 30m³/h to 90m³/h, with over 600 units exported cumulatively. Its comprehensive performance has been validated in construction sites in Southeast Asia, the Middle East, and Africa.

1. S-Pipe Valve Pumping System: The Core of High Efficiency and Low Blockage Rate

The entire HBT series trailer concrete pump adopts an S-pipe valve distribution structure, which is the key to its superior pumping performance compared to gate valve models. The S-pipe features a smooth diameter transition, with an inlet diameter of 230mm smoothly transitioning to an outlet diameter of 180mm, reducing flow resistance by approximately 18%. Actual pumping efficiency can reach over 80% of the theoretical displacement, higher than the industry average of 72%. The inner wall of the S-tube is overlaid with a 3mm thick hard alloy layer. The spectacle plate and cutting ring adopt a YG8 hard alloy inlay structure. Under normal working conditions, the spectacle plate has a service life of up to 30,000 cubic meters of concrete, and the cutting ring has a service life of approximately 20,000 cubic meters. The S-valve swing is hydraulically driven, with a reversing time of less than 0.3 seconds. Combined with a slump range of 100-230mm, it can stably pump fine aggregate concrete, mortar, and even tailings slurry and other special materials, reducing the pipe blockage rate by 40% compared to traditional models.

2. Dual-Pump Dual-Circuit Hydraulic System: Independent Operation Enhances Reliability

The hydraulic system adopts a dual-pump dual-circuit open design. The main pumping oil circuit and the S-valve swing oil circuit are independent of each other and do not interfere with each other. The advantages of this design are reflected in three aspects:

First, the system is simplified, reducing the number of potential failure points by approximately 30%, facilitating rapid troubleshooting by on-site engineers.

Second, the main pump adopts a large-displacement cartridge valve structure, resulting in fast response, low internal leakage, and continuous operation with oil temperature controlled below 75℃, making it suitable for high-temperature environments in tropical regions.

Third, the open system has a built-in circulation filtration function, ensuring that the hydraulic oil cleanliness can be stably maintained below NAS 9 level, extending the average lifespan of hydraulic components by 25%. The system is equipped with differential pressure sensing reversing technology and electro-hydraulic proportional buffering function, reducing reversing impact, significantly decreasing pipeline vibration, and extending the service life of pipeline connections.

3. End-to-End Wear-Resistant Design: Extending Equipment Overhaul Cycles

The durability advantages of the HBT series trailer concrete pumps are reflected in every wear-prone component. The inner wall of the conveying cylinder undergoes a double-layer treatment of quenching and chrome plating, with a plating thickness of 0.15mm and a hardness exceeding HRC60. Its normal service life is 80,000-100,000 cubic meters. The concrete piston uses imported nitrile rubber and polyurethane composite material, which is hydrolysis-resistant and high-temperature resistant, maintaining its sealing performance even at 60℃ oil temperature. The mixing shaft end employs a dual structure of floating seal and mechanical seal to prevent mortar from entering the bearing. The entire machine is equipped with a fully automatic centralized lubrication system, quantitatively injecting grease according to the pumping frequency, avoiding omissions or over-lubrication by manual methods. Overall, the HBT concrete pump' first major overhaul cycle is extended by approximately 30% compared to similar models, significantly reducing maintenance costs and downtime risks in overseas projects.

4. PLC Intelligent Control: Lowering the Operational Threshold and Reducing Failure Losses

The electrical control system uses PLC integrated control and is equipped with a bilingual Chinese/English operating interface, allowing overseas operators to quickly learn and operate the system after simple training. The system features real-time monitoring, displaying key parameters such as oil temperature, oil pressure, pumping frequency, and cumulative volume. It also includes over 20 built-in self-diagnostic codes for faults, directly displaying the fault point when an anomaly occurs, more than doubling maintenance efficiency. A wired remote control is standard, with an operating distance of up to 100 meters, allowing workers at the pouring site to directly control pump start/stop and forward/reverse pump switching, reducing communication costs and the risk of misoperation. The reverse pumping function can achieve reverse suction within 3 seconds, clearing minor pipe blockages without dismantling the pipes, significantly reducing the probability of construction interruptions.

5. Power and Chassis Adaptability: Covering Diverse Overseas Working Conditions

The HBT series trailer pump offers both diesel and electric power configurations to adapt to different construction site conditions. The diesel version is equipped with a Weichai Deutz engine, covering a full power range from 45kW to 194kW, enabling independent operation in remote mountainous areas and mining areas without external power. The electric version uses a Y-series three-phase motor, supporting multiple voltage options (380V/415V/480V), reducing energy consumption by approximately 25% compared to the diesel version, making it suitable for long-term urban projects. The trailer chassis utilizes heavy-duty axles and tubeless tires, achieving a towing speed of up to 60 km/h and offering flexible relocation. With an overall height controlled within 2.5 meters, it can navigate most container roads and rural sections with height restrictions. A 40-foot container is sufficient for the complete transport of the unit and pipelines, keeping ocean freight costs under control.

In summary, the advantages of the HBT series trailer pumps are not merely a collection of single performance features, but rather a systematic optimization addressing the actual pain points of overseas projects—from reducing pipe blockage rates and extending overhaul cycles to simplifying operation and controlling total lifecycle costs. Every design element aims to improve contractors' construction efficiency and return on investment. This is the fundamental reason why this series maintains a stable repurchase rate in the global market.
