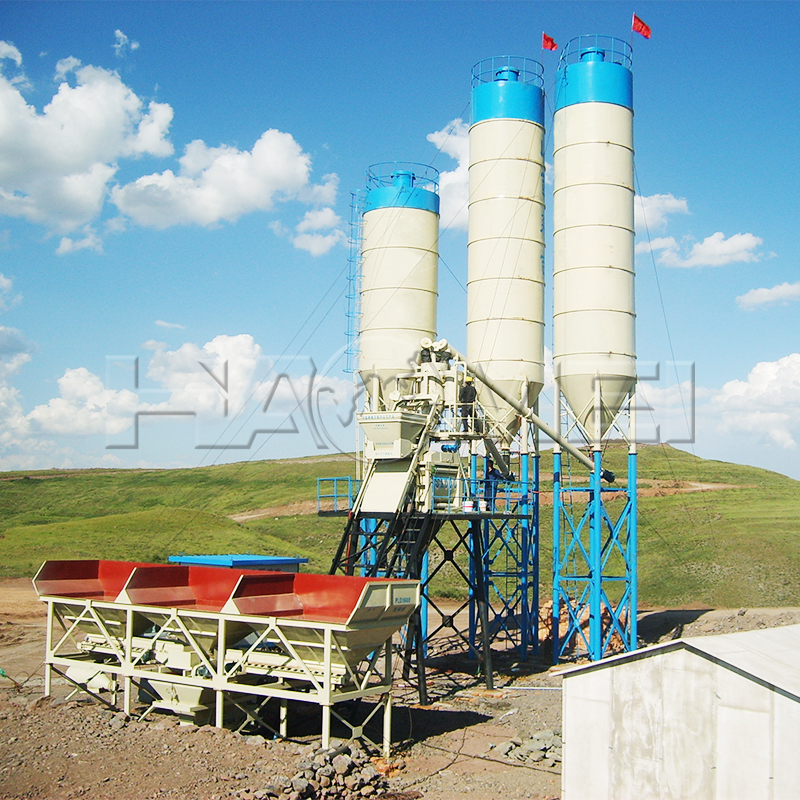

How are the various raw materials weighed in HZS50 concrete mixing station?

The raw materials needed in the hzs50 concrete mixing station include cement, sand and stone aggregate, water and admixture, etc., so how to weigh all kinds of raw materials in the hzs50 concrete batching station?

Weighing of cement powder

In fact, in addition to the most commonly used cement powder, HZS50 mixing station also has powder materials such as fly ash and mineral powder, and their weighing methods are the same. Different types of powders are stored in different cement tanks and their weights are independent of each other. The weighing hopper is suspended above the concrete mixer. Also through the sensor, we want to control the conveying of weighing data in the system to ensure fast weighing response and high precision.

Weighing of aggregate of sand and stone

HZS50 concrete batching plant sandstone is weighed in the PLD1600 batching machine, which adopts is the cumulative weighing method, the benefits using this way to weigh is accumulated in a weighing hopper, convenient for weighing and one-time to hopper hoist feeding, whose efficiency is better than independent weighing batching machine, and the price is more cheaper.

Weighing of liquid raw materials

In general, HZS50 mixing station water and admixtures is weighed above blender, they are independent, after admixtures weighed, it will come into water weighing hopper to first mix with water and then the two will enter into the mixing drum.
