How High Can A Concrete Pump Go?

2025-03-06 17:04:07

Conventional concrete pumps usually have a pumping height of between 30 and 100 meters, depending on the type and model of pump and the design parameters. For high-pressure concrete pumps and specially designed concrete pumps, pumping heights can be higher, such as 150 meters or more. However, for ultra-high-rise buildings, specially designed ultra-high-pressure concrete pumps are required to achieve higher pumping heights, such as 300 meters.

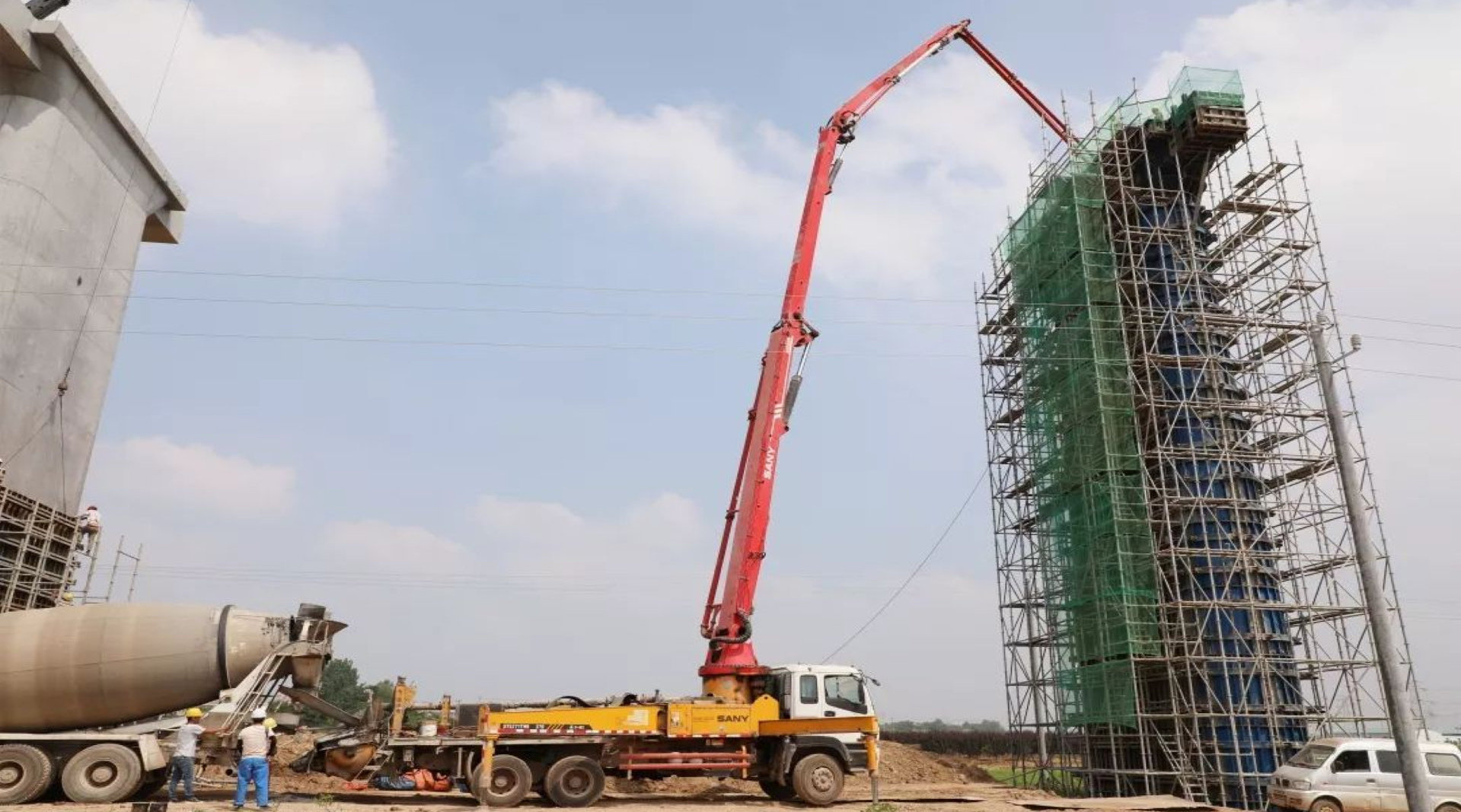

how high can a concrete pump go

Factors affecting pumping height of concrete pumps are:

1. Pump type: different types of concrete pumps (such as trailer pumps, boom pumps, truck-mounted pumps, etc.) have different pumping capacity and height limitations, which is one of the key factors in determining the furthest pumping distance (including vertical height and horizontal distance).

2. The nature of the concrete: the strength of the concrete, fluidity, viscosity and air content, etc. will affect the pumping performance. Thicker concrete may result in lower pumping height.

3. Piping system: the diameter, length, number of elbows and configuration of the pipeline will affect the pumping pressure and height. Reasonable piping layout can reduce resistance and avoid unnecessary elbows to increase the difficulty of pumping. Longer or more elbows in the piping system will increase the resistance to flow and reduce the pumping height.

4. Pumping pressure: the maximum output pressure of the concrete pump directly affects its pumping height. Need to judge according to the specific pump parameters.

5. Environmental factors: temperature, humidity and other environmental conditions may also affect the fluidity of concrete and pumping performance.

6. Construction process: the correct operation process and preventive measures are important to ensure smooth pumping.



When pumping concrete at high altitude, the quality and performance requirements of concrete pumps are relatively high, mainly reflected in the following aspects:

1. Pressure resistance: high altitude pumping requires high pressure, so the pressure resistance of the concrete pump must meet the requirements to avoid failure under high pressure.

2. Fluidity: concrete pumping at high altitude requires good fluidity to ensure uniform pumping and reduce the risk of clogging.

3. Stability: working at height requires high stability of the equipment, the pump should have good support and stabilization design to ensure that there is no tilting or destabilization at work.

4. Abrasion resistance: in the process of pumping at height, the contact between concrete and pumping pipes and pumps will cause wear and tear, so the abrasion resistance of the material is very important.

5. Safety: High-altitude operation has high requirements for safety, and the design of concrete pumps should take into account safety measures to prevent accidents.



In summary, pumping concrete high puts forward higher requirements on the performance and quality of equipment, and construction units need to pay special attention to these factors when choosing and using concrete pumps.
