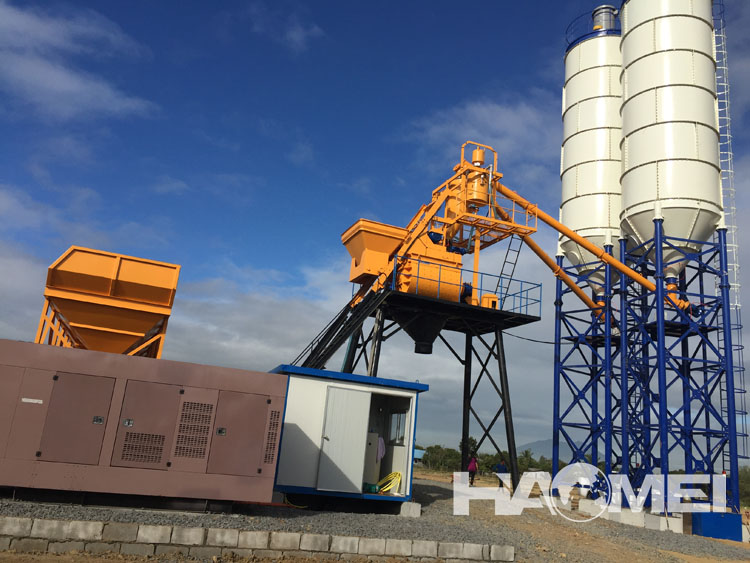

Compact Skip Loading Concrete Plant

As a professional manufacturer with over two decades of experience in the concrete batching plant industry, Haomei Machinery offers a series of compact skip load concrete plants—including the HZS25, HZS35, HZS50, and HZS60 models—with theoretical capacities ranging from 25 to 60 m³/h. These concrete plants utilize a vertical hopper-feeding structure instead of traditional inclined belt conveyors; for the same production capacity, the horizontal footprint is reduced by 30%–40% compared to belt-fed systems. Taking the HZS35 skip load concrete plant model as an example, the main unit occupies an area of only about 9m × 5.5m, allowing for flexible deployment in space-constrained environments such as cramped urban construction sites, mountainous mining areas, and township-based commercial concrete stations.

Core Configuration of Skip Loading Concrete Plant:

The HZS series skip feeding concrete plant comes standard with the JS series twin-shaft forced concrete mixer, precisely matched to the concrete plant's capacity: the HZS25 features the JS500 mixer (500L nominal discharge capacity); the HZS35 uses the JS750 (750L); and the HZS50/HZS60 utilize the JS1000 (1000L).

With a standard mixing cycle of 60–72 seconds and a mortar density variation coefficient of ≤0.8%, the plants consistently produce concrete across the full range of grades from C10 to C50.

The metering system employs a fully independent electronic weighing architecture. Aggregate dynamic metering error is ≤±2%, while the error for cement, water, and admixtures is ≤±1%. Featuring a built-in dynamic free-fall compensation algorithm, the mix proportioning accuracy fully complies with international standards EN 206 and ISO 19720.

Key Advantages of Skip Loading Concrete Plant:

The vertical hopper-feeding structure reduces the number of moving parts by over 40% compared to belt-fed systems. This fundamentally eliminates common failure points such as belt misalignment, idler wear, and material spillage. Consequently, the annual failure rate in dusty, harsh operating conditions is reduced by approximately 50%, resulting in higher equipment uptime. Equipment loads are evenly distributed, requiring only a leveled, hardened standard concrete floor for operation rather than a heavy reinforced concrete foundation; the volume of civil engineering work is reduced by over 35% compared to belt-conveyor type concrete plants. Over 80% of core components are pre-assembled at the factory, and all parts fit into standard 40HQ containers for transport. On-site installation, commissioning, and startup take just 5–7 days—cutting the construction period by nearly 40% compared to traditional concrete plants assembled from loose parts and significantly saving on overseas labor costs. Routine maintenance involves only inspecting steel cables, pulley blocks, and the main unit's wear parts; general workers can operate the system independently after just 3–5 days of training, ensuring low operational barriers.

Typical Applications of Skip Loading Concrete Plant:

The skip hoist concrete batching plant is highly versatile, suitable for small-scale urban municipal projects, rural road network upgrades and expansions, commercial concrete supply points for towns and villages, small precast component factories, and infrastructure construction in mountainous or mining areas. For export markets, we offer customization for 380V/415V voltage systems and standard CE certification; the operating interface supports multiple languages. These plants have been exported to over 30 countries and regions across Southeast Asia, Africa, the Middle East, and Latin America.

Why Choose Haomei?

As an original manufacturer, Haomei Machinery provides end-to-end services, ranging from solution design and containerized shipping to on-site installation guidance and rapid global delivery of core spare parts. Whether you are a small-to-medium contractor with a limited budget or a commercial concrete operator looking to expand capacity within a confined site, our engineering team can recommend the optimal model and configuration based on your daily output requirements, site dimensions, and local climate conditions.

In my years of industry experience, I have observed that for small-to-medium projects with tight schedules (under six months) and space constraints, compact skip loading concrete plants typically offer the fastest return on investment. By combining reliable performance with a very low barrier to entry, they provide a practical and dependable concrete production solution for small-to-medium engineering clients worldwide.
