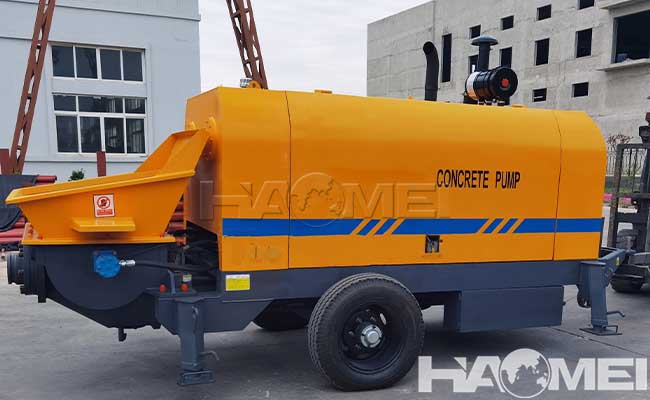

Trailer Mounted Concrete Pump HBT60

Trailer mounted concrete pump HBT60 is a widely used equipment in construction projects, mainly used for conveying and pumping concrete. HBT60 trailer mounted concrete pump plays an important role in concrete construction of high-rise buildings, bridges, tunnels and other projects with its high efficiency and stable performance. The equipment adopts advanced hydraulic system, which can realize continuous pumping of concrete and greatly improve the construction efficiency.

Take HAOMEI trailer mounted concrete pump as an example, its main technical parameters include:

Equipment model: HBT60 (new)

Total mass of the machine: 5000kg

Overall dimensions (L×W×H): 6000x1970x2150mm

Rated power: 55kW

Rated speed: 1480r/min

Maximum theoretical concrete conveying capacity (low pressure/high pressure): 55m³/h

Concrete conveying pressure (low pressure/high pressure): 6.7Mpa

Distribution valve form：oblique gate valve

Conveying cylinder specification×stroke：Φ195x1400m

Hopper volume×loading height: 380x1400m³.

Parameters such as diameter of discharge opening and inner diameter of concrete conveying pipe should be determined according to the specific model and configuration.

The main features of trailer mounted concrete pump HBT60:

- High-efficiency pumping: HBT60 trailer mounted concrete pump has large pumping capacity, which can meet the demand for concrete conveying volume of different projects. The pumping system is optimized to ensure the continuity and stability of the concrete in the conveying process.

- Flexible and convenient: as a tractor pump, HBT60 trailer mounted concrete pump has high mobility and can be easily moved to different construction sites. Meanwhile, its compact structural design and small footprint make it easy to use in narrow construction environments.

- Stable and reliable: the equipment adopts high-quality hydraulic components and wear-resistant materials, and is manufactured through strict process and quality control to ensure its stable and reliable operation. In addition, it is also equipped with perfect safety protection devices, which can stop the machine in time to protect the equipment under abnormal conditions.

- Energy saving and environmental protection: HBT60 trailer mounted concrete pump fully considers the requirements of energy saving and environmental protection during the design and manufacturing process, and adopts advanced energy-saving technologies and materials to reduce the energy consumption and emissions of the equipment.

Trailer mounted concrete pump HBT60 is an efficient, stable and reliable concrete conveying equipment, which plays an important role in construction projects. In the process of purchase and use, you need to fully understand the technical parameters and performance characteristics of the equipment, and follow the relevant operation and maintenance specifications to ensure construction quality and equipment safety.
