HZS60 Concrete Batching Plant

HZS60 concrete mixing plant is also called 60m3 commercial concrete mixing plant. It is an intermittent compulsory model designed by our company based on the model of mixing plant, which fully considers appearance, maintenance, novel and unique structure, beautiful appearance, and all materials are lifted at once The mixing plant is the same as the mixing plant.

The theoretical productivity of the HZS60 concrete batching plant equipment is 60 cubic meters per hour; the main unit of the 60 mixing plant is a JS1000 type forced mixer with a nominal capacity of 1000L; the batching capacity of the batching machine is 1600L, the maximum productivity of the screw conveyor is 80t / h, and the maximum aggregate The particle diameter is 80mm, the aggregate silo capacity is 51 cubic meters; the cement weighing range and accuracy (0 ～ 900) ± 1% kg, the additive weighing range and accuracy (0 ～ 20) ± 1% kg, aggregate weighing The measuring range and accuracy are 0 × 3000 ± 2%. It occupies less space, uses less equipment, and is easy to maintain. It can be equipped with an independent performance control room, making the equipment easy and safe to operate, and capable of producing high-quality and efficient concrete under the condition of accurate batching machine measurement.

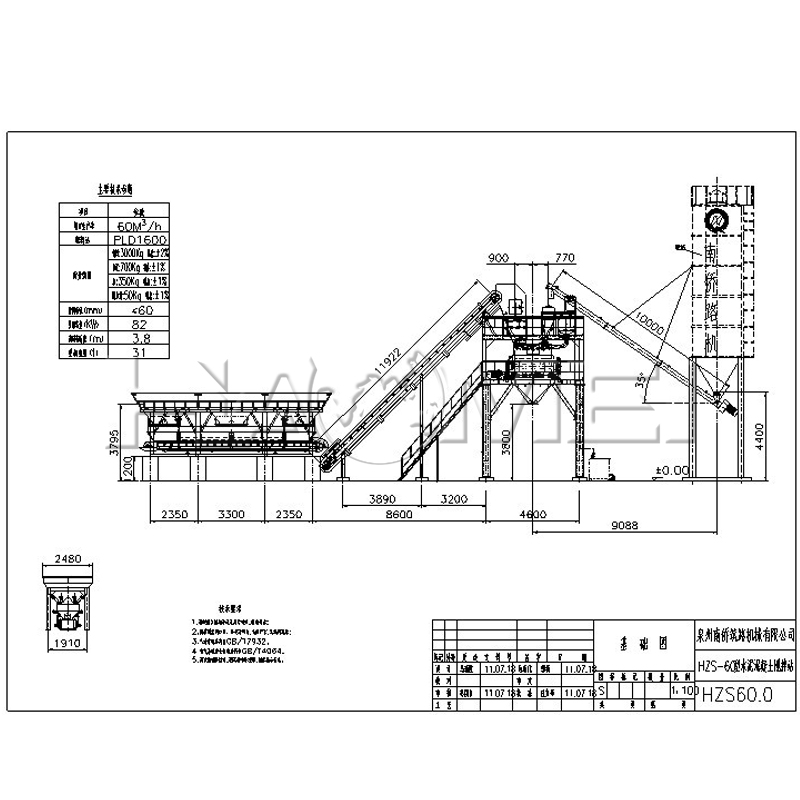

Technical Parameters of HZS60 Concrete Batching Plant:

Key Parts of HZS60 60M3 Concrete Batching Plant

1. Mixing System: JS1000 concrete mixer, or MPC1000 Planetary Mixer

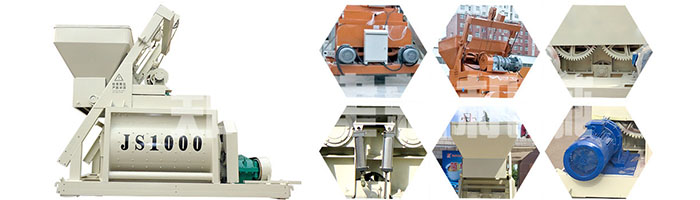

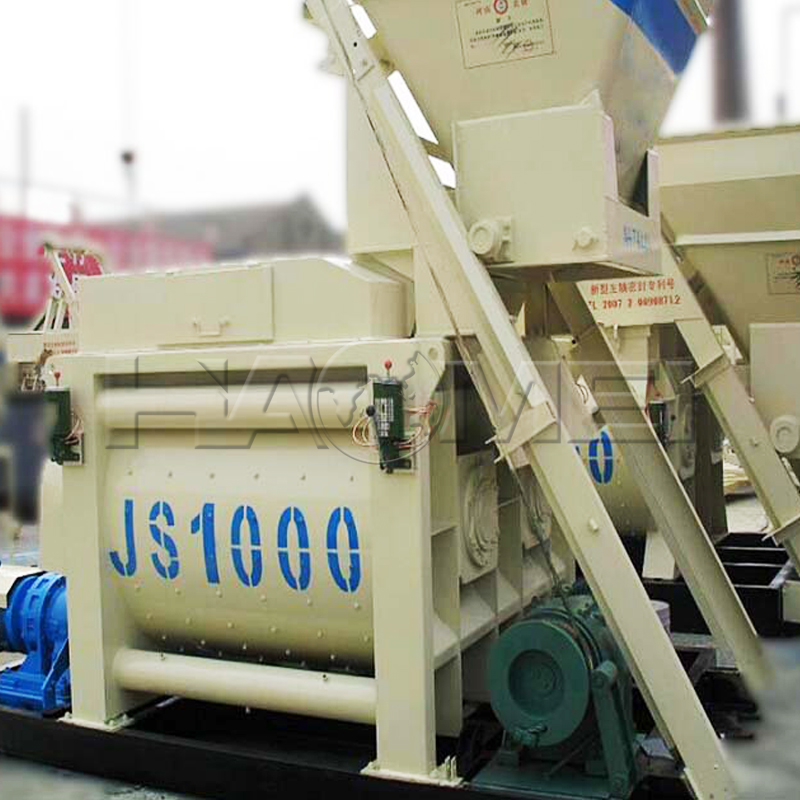

JS1000 concrete mixer: composed of a motor, a belt pulley, a reducer, an open gear, mixer mixing device, oil supply device and other components. When working, the motor drives the two-stage gear reducer, and the two shafts of the reducer drive the two horizontal stirring shafts to rotate at the same speed in opposite directions through two split gears.

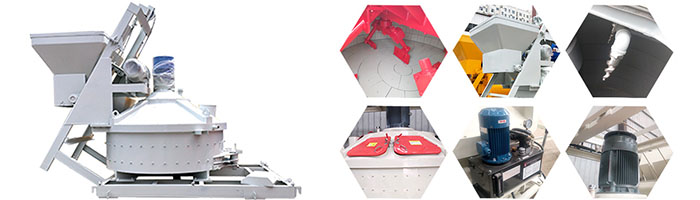

MPC1000 vertical axis planetary mixer: consists of the mixing arm and its blades make planetary movement, the mixing trajectory is continuous, the mixing motion is violent, and the homogeneity is good; the angle of the mixing blade is reasonable, the mixing efficiency is high, and the wear of the lining plate and blade is reduced; the bottom scraping The board cleans the bottom material, the side scraper cleans the side material, and has an automatic cleaning function; the bottom scraper stirs while increasing the discharge speed.

2. Batching System

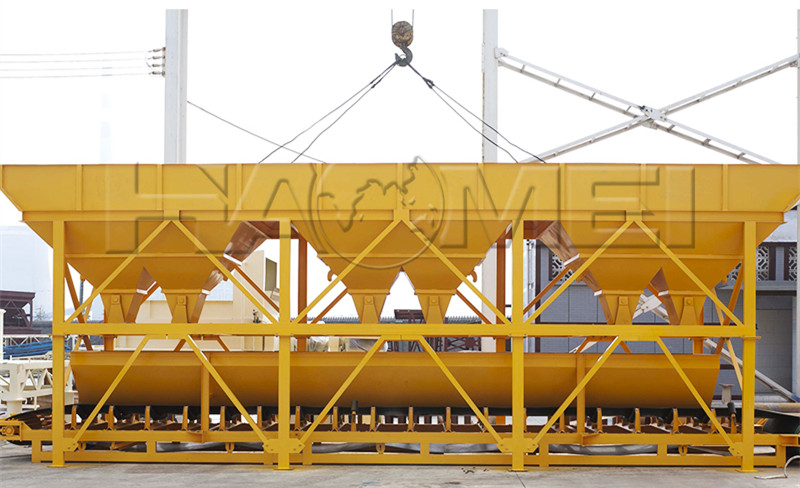

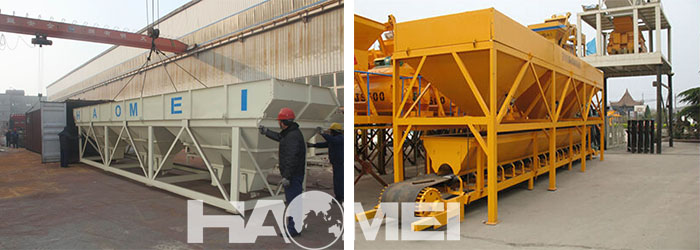

The hzs60 concrete mixing station uses the PLD1600 concrete batching machine, which can effectively ensure the accuracy of the mixing ratio of cement, sand, stones, etc., and the electronic weighing system further improves the accuracy of weighing. The top panel of the batching machine produced by Haomei can be lowered or removed as needed, which can greatly reduce the labor intensity of the feeding part and increase the convenience of construction.

3. Conveyor System

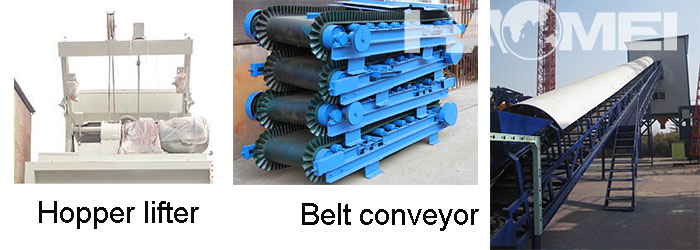

(1) Hopper lifting type: the brake motor drives the drum to rotate through the reducer, and the wire rope pulls the hopper through the pulley to climb up the track of the loading rack. When it reaches a certain height, a pair of rollers on the bottom of the hopper bottom enter the loading The water rail is installed, the bucket door is automatically opened, and the material enters the mixing drum through the feed nozzle.

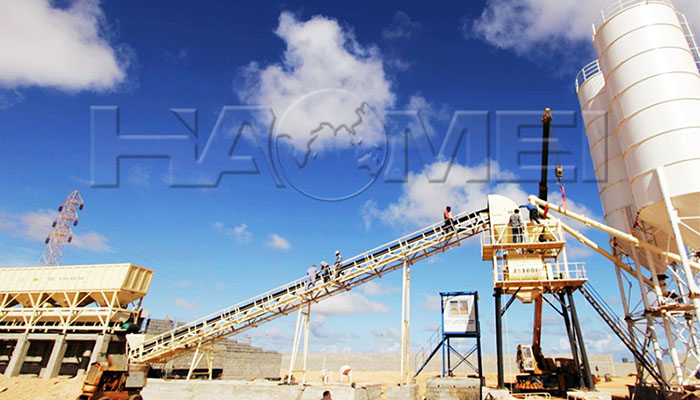

(2) Belt conveyor type: ideal high-efficiency continuous transportation equipment, with advantages of long transmission distance, large transportation volume, continuous transportation, etc., and reliable operation, easy to realize automation and centralized control, and convenient disassembly and assembly.

4. Cement Silo and Screw Conveyor

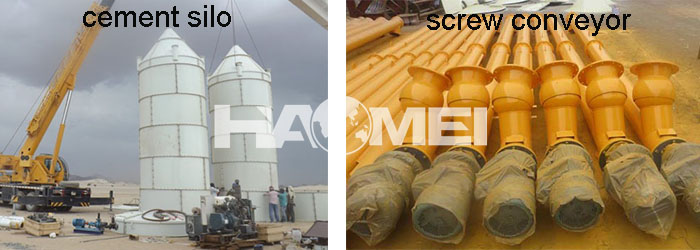

(1) Chip-packed cement silos address many difficulties, such as the difficulty of exporting cement silos, the difficulty of making tubes on site, the difficulty of site transfer, and the ultra-high and wide transportation. Cement silos (cement tanks) all comply with industry standards. The discharge height is 1.96 meters and 4.2 meters, and can also be processed according to user requirements.

(2) The overall cement silo is a closed material storage silo, suitable for storing grain, cement, fly ash and other materials. The silo body is equipped with a material level system, which can display the position and amount of the material. The top is equipped with a safety valve Under the circumstances, the cement silo body is safe. A dust removal device is installed on the roof of the silo to avoid dust pollution. The arch breaking device can remove the solidity caused by the material deposition for too long.

(3) The horizontal cement silo has a cylindrical structure, and the bottom is supported by four round tube legs to support the entire silo body. The entire silo is made of steel structure and welded; the top is equipped with a dust collector and a pressure safety valve. The horizontal cement silo complies with industry standards. The silo body is made of steel plate with slotted hoop, and the outriggers are assembled with national standard pipes.

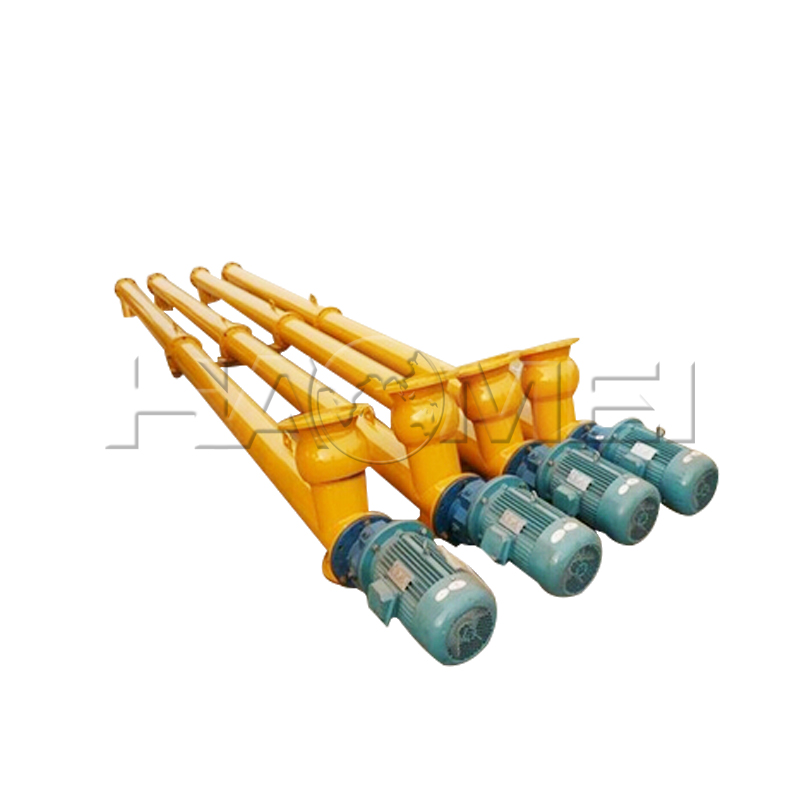

(4) The screw conveyor is made of high-quality steel pipe with good rigidity; double-pitch blades reduce the degree of material compression; high-quality gearbox, heavy-duty design, large torque and low noise; optional universal ball joint to facilitate installation, adjustment and steering; Equipped with excellent quality mid-hanging bearings and tail bearings, and easy to install.

5. Control System

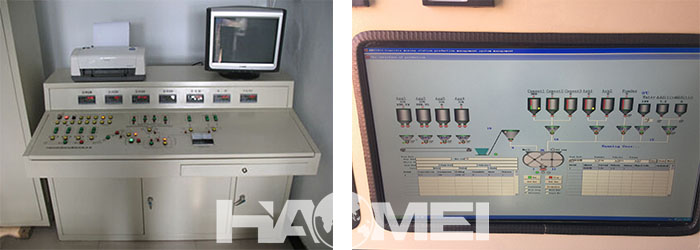

The center of the 60 concrete mixing station is the control system. The whole machine is controlled by computer, which can be controlled automatically or manually. The operation is simple and easy to master. The dynamic panel display can clearly understand the operation of each component, and can store and print report data at the same time.

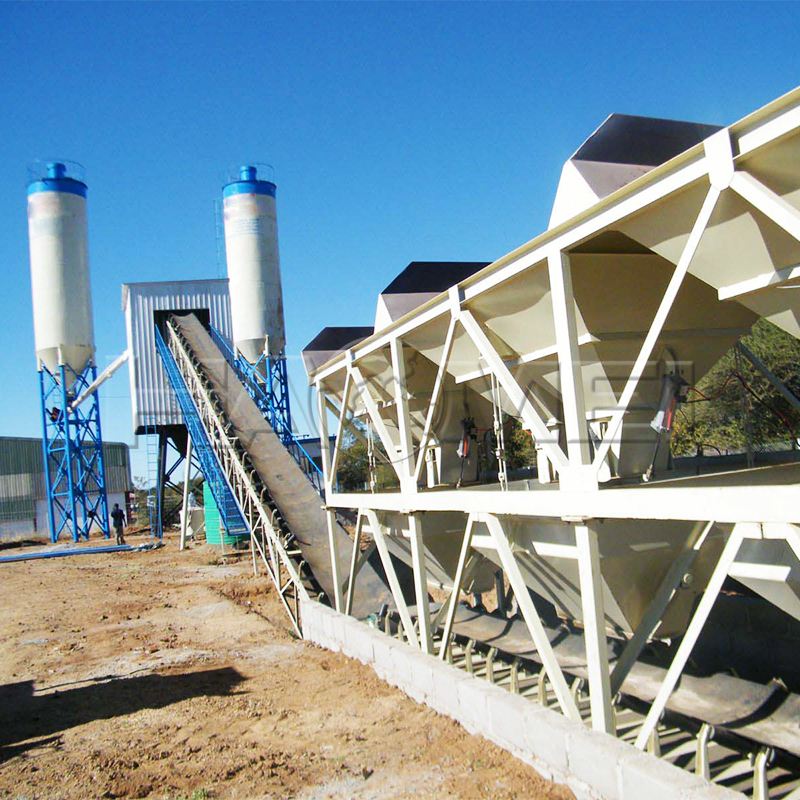

Cases of our ready mix 60m3 concrete mixing plant

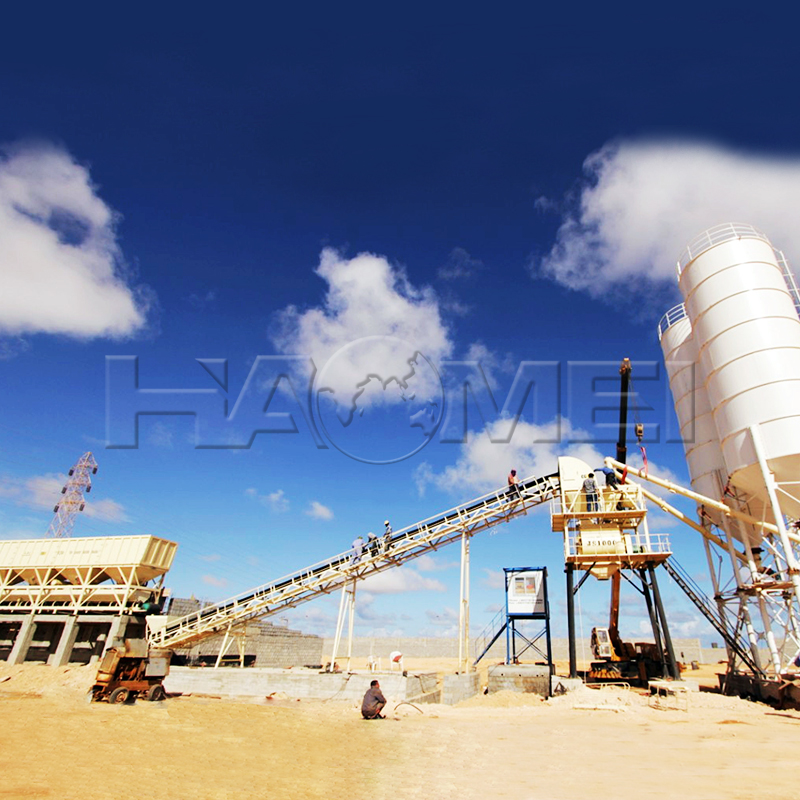

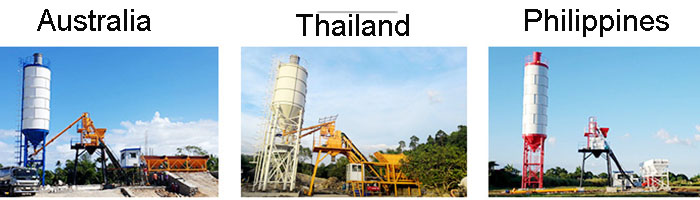

Our ready mix plants have been exported to Indonesia, the Philippines, South Africa, Australia, Malaysia, Thailand, Singapore, Saudi Arab, Iraq, Pakistan, Nigeria, Algeria, Vietnam, Laos, Mongolia, Kenya, Ethiopia, Egypt, Garner, Tanzania, Zambia etc.
