yhzs35 mobile concrete batching mixing plant

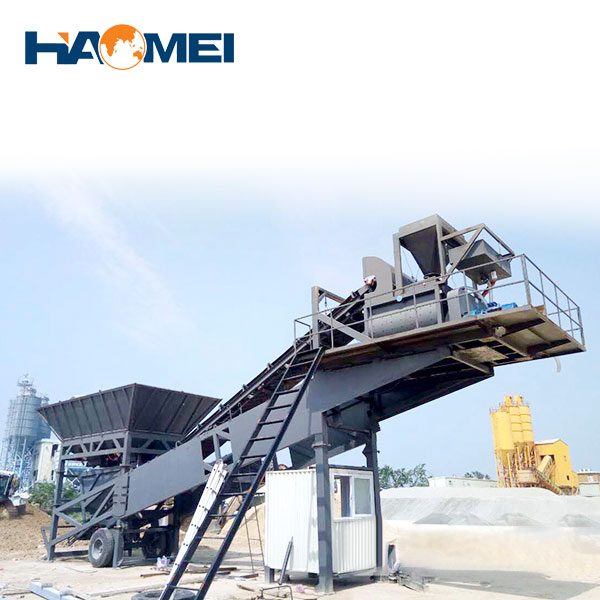

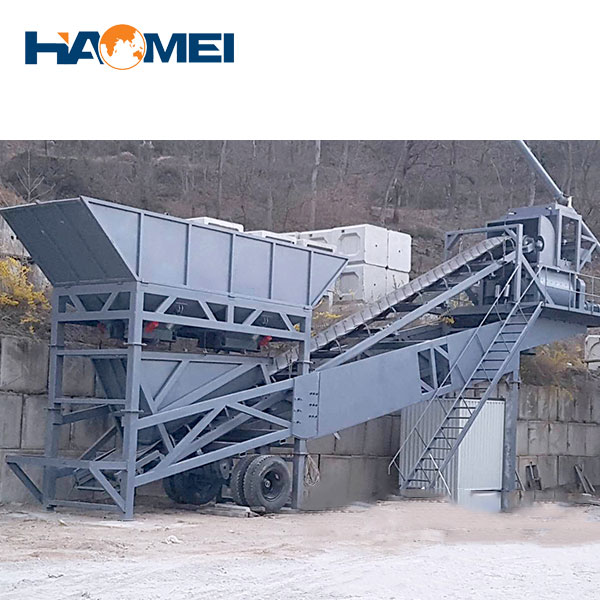

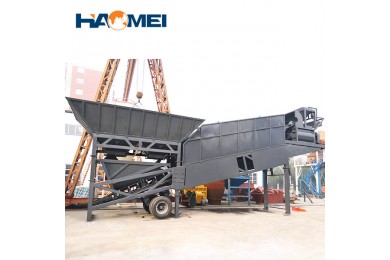

YHZS35 mobile concrete batching plant is a portable 35m3 concrete mixing plant equipment. Through ingenious design, the batching system, weighing system, mixing host, storage, unloading and automatic control system of the plant are concentrated in a trailer unit, and the movement is realized through a trailer. The YHZS35 mobile concrete mixing plant can reach an output of 35 cubic meters of concrete per hour. At the same time, it has the characteristics of flexible movement, simple and quick disassembly and assembly, and stable performance. It is the first choice for field engineering construction such as railways, highways, ports, bridges, and hydropower projects. type.

Technical Parameters of YHZS35 portable concrete batching plant

YHZS35 mobile concrete batching plant profit

The theoretical production rate of YHZS35 mobile concrete mixing plant is 35m³/h, and the actual production rate is about 25m³/h. According to the calculation of working 8 hours a day and 300 days a year, the annual output of concrete is about 60,000 cubic meters. The price range is calculated at 320 yuan per square meter, and the annual profit is about 4.798 million yuan. Please consult us for detailed investment plans.

Main configuration of YHZS35 mobile concrete batching plant

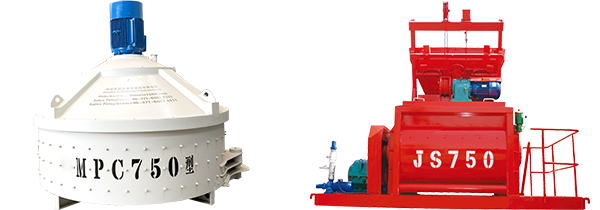

1. Concrete Mixer: JS750 or MPC750

The mixing system of JS750 concrete mixer is composed of a motor, a belt pulley, a speed reducer, open gears, mixing drum mixing devices, oil supply devices and other components. When working, the motor drives the two-stage gear reducer, and the two shafts of the reducer drive the two horizontal agitating shafts to rotate at the same speed in the opposite direction through the two split gears.

The mixing system of MPC750 vertical shaft planetary concrete mixer is composed of: the mixing arm and its blades do planetary motion, the mixing track is continuous, the mixing motion is intense, and the homogeneity is good; the angle of the mixing blade is reasonable, the mixing efficiency is high, and the wear of the liner and blades is reduced; The board cleans the bottom material, and the side scraper cleans the side material, with automatic cleaning function.

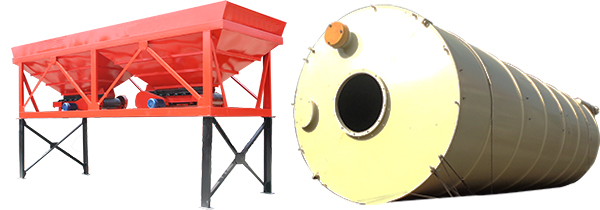

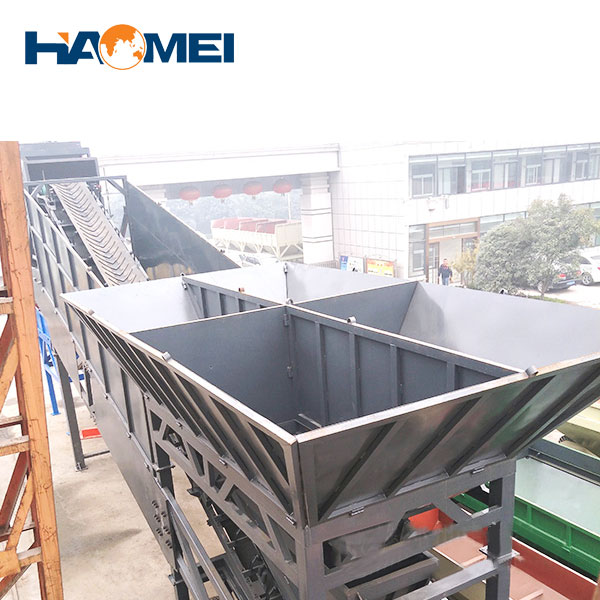

2. Batching Machine

The YHZS35 mobile concrete mixing plant uses the PLD1200 concrete batching machine, which uses a loader or a belt conveyor to feed the sand and gravel batching device. It can be equipped with two to four different materials. It can be used with various types of mixers and other metering devices. It can be combined into a fully automatic and semi-automatic mixing station.

3. Cement Silo

The cement silo is divided into three types: flake cement silo, integral cement silo, and horizontal cement silo. The upper and lower parts of the cement silo are equipped with level gauges and dust removal systems; to prevent the powder from arching, a blower is installed at the cone of the silo Arch breaking device; the cement silo of the 35m3 mobile concrete batching plants can be designed as a sheet cement silo, which is convenient for transportation and use.

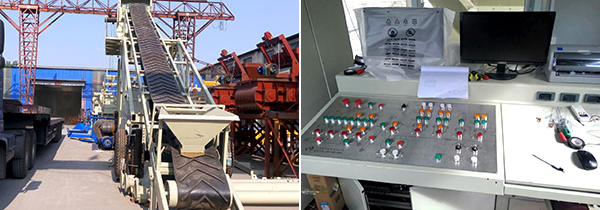

4. Aggregate Lifting System

A belt conveyor is an ideal high-efficiency continuous transportation equipment. It has the advantages of long transportation distance, large transportation volume, continuous transportation, etc. It is easy to realize automation and centralized control, and it is very convenient to disassemble and assemble.

5. Control Room

The center of the yhzs35 mobile concrete mixing plant is the control system. The whole machine adopts computer control, which can be controlled automatically or manually. The operation is simple and easy to master. Dynamic panel display, can clearly understand the operation of each component, and can store and print report data at the same time.
