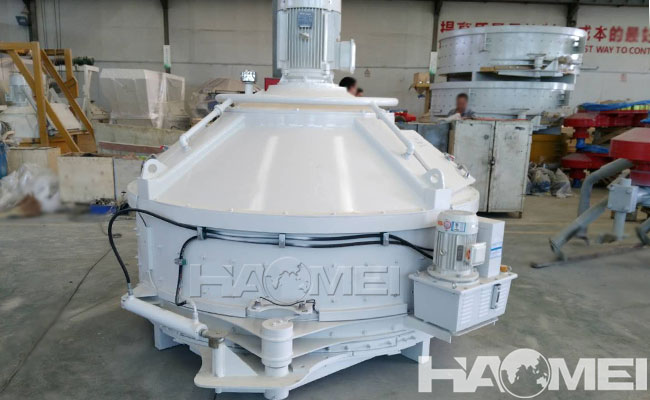

Mixing System of Planetary Cement Mixer

The standard mixing mode and differential mixing mode of planetary cement mixer can carry out a wider range of material mixing. The mixing arm in planetary concrete mixer is streamlined. In order to reduce the sticky shaft of the mixing material and increase the service life of the concrete mixer, a wear-resistant protective cover is designed for the mixing device. According to the statistics of application practice, the service life of this design is doubled.

The vertical shaft planetary cement mixer is designed with a reinforced scraper to eliminate the dead angle of mixing. Mixer lining and blade materials are selected according to different user industries: wear-resistant alloy inserts, stainless steel materials, ceramic materials, high-concentration alloys, surfacing materials, polyurethane materials, high wear-resistant rubber and cast stone materials. The mixing blade is parallelogram (patented product), which can be turned over 180° for repeated use, which doubles the utilization rate.

The unloading system of planetary concrete mixer selects hydraulic or pneumatic way to switch the unloading door according to the needs, and the number of unloading doors is 1-3 to choose from. The discharge door is equipped with a special sealing device to ensure firm sealing, reliable control, no possibility of material leakage, and strong environmental protection. The large-size inspection door is convenient for inspection and cleaning, and the inspection door is equipped with a safety switch with high sensitivity, which is safe and convenient during inspection.

The waterway device of planetary cement mixer is designed with a top-mounted form to solve the phenomenon of residual admixture and water in the pipeline, and avoid losses caused by customers when changing the formula. The nozzle adopts a spiral solid cone nozzle, which has a fine and uniform atomization effect, a large coverage area, and a more uniform material mixing.
