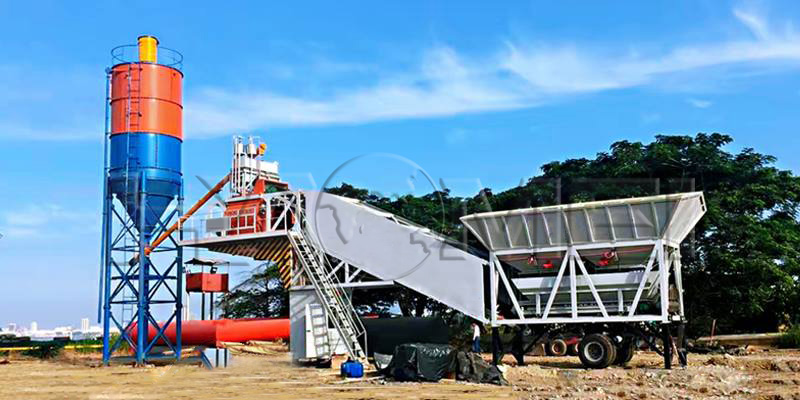

YHZS50 Mobile Concrete Batching Plant

Mobile concrete batching plants are also known as the skip-type concrete batching plant, modular concrete mixing plants, ready mix concrete batching plant etc. They are especially designed for construction projects requiring strong mobility of a batching plant, such as hydropwer stations, express highways, rail ways, bridges, docks, airports and so on. It can also be applied in city construction and prefabrication factories. This model of the plants are easy to be installed, dismantled and delivered.

Features of our yhzs50 mobile concrete batching plant

1. Efficient mixing. The plant is equipped with JS1000 twin horizontal shaft concrete mixer, which boasts strong power, high efficiency and top quality.

2. Modular structure. It’s easy to assemble, dismantle and transport the modules. The whole installation only takes seven to ten days, and steel bases are available.

3. The distributor is PLD1600 of high measuring precision.

4. Cement, water and chemical additives are all measured by electronic scales precisely.

5. The water supply system runs by the specialized water pressure principle which accelerates water flow and makes water spray in a more uniform way.

Structure of our yhzs50 mobile concrete batching plant

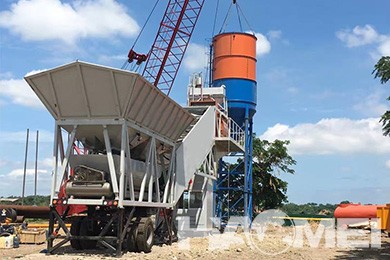

1. Aggregate distributing system

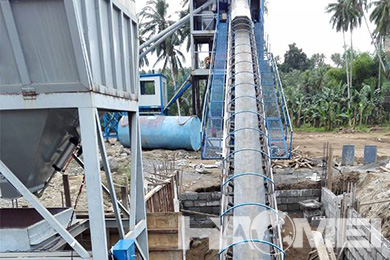

The YHZS50 mobile concrete batching plant is equipped with PLD1600 concrete distributor, which consists of raw material feeding device, weighing system and electronic control system. The feeding units is arranged by the shape of a triangle. Materials are fed by a belt conveyor and weighed by a lever and a single sensor of high precision.

2. Mixing system

A YHZS50 batching plant has a JS1000 double horizontal concrete agitator as its mixing unit. The agitator can deal with all kinds of fluid, dry, light aggregates and various mortars. It has a reasonable structure, good mixing quality, short mixing time, low energy consumption and small noise.

3. Weighing system

Weighing system of the plant is composed of three scales respectively for measurement and distribution of cement, water and additives.

4. Screw conveyor

LSY series of screw conveyor is applied in the plant for powder material feeding. It sends materials continuously to the mixing system by a rotating body. The conveyor is of advanced feeding mouth which makes its installation more convenient.

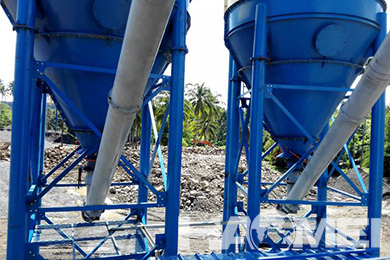

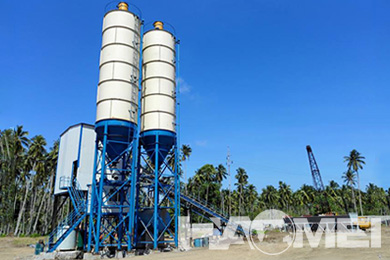

5. Cement silos

Cement silos are for storage of cement, consisting of the silo body, the frame, the feeding pipe, the dust remover, the material level meter and the discharge outlet.

Note: The price listed is only for reference. Please contact us for a specific price.
