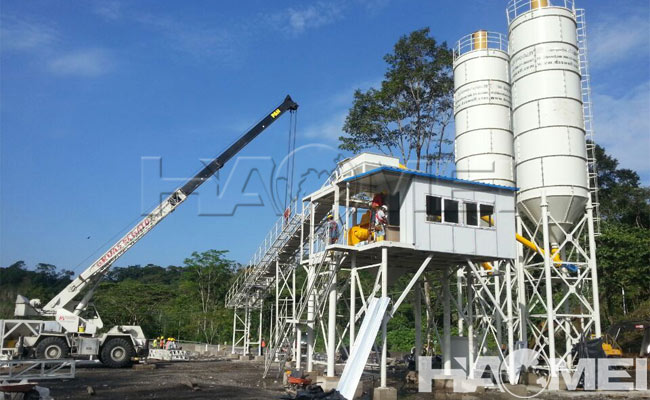

90m3/h Belt Conveyor Concrete Batching Plant

Many engineering clients, when selecting a concrete batching plant, often only focus on the theoretical capacity figures, neglecting the impact of the conveyor structure, installation efficiency, and operation and maintenance intensity on the project's overall profitability. For medium-sized overseas municipal projects, county road construction, and small to medium-sized commercial concrete plants, the core value of a 90m3/h belt conveyor concrete batching plant goes far beyond its nominal capacity of 90 cubic meters per hour; it lies in its comprehensive adaptability throughout the entire process of on-site deployment, continuous production, and long-term operation and maintenance. As a classic high-volume model in Haomei Machinery's export product line, the HZS90 belt conveyor concrete batching plant is a balanced solution refined to address the pain points of overseas projects throughout their entire lifecycle.

From the perspective of on-site deployment, the modular design of 90m3/h belt conveyor concrete batching plant significantly reduces the pre-production cycle. The entire concrete plant adopts a modular design with functional units, with over 80% of the core components pre-assembled and commissioned in the factory. After disassembly, it can be fully adapted for standard 40HQ container transportation, eliminating the need for special bulk carriers and effectively reducing cross-border logistics costs. On-site construction requires no complex, customized foundations; only a level, hardened ground surface is needed. Standardized flange connections between modules eliminate the need for on-site secondary welding. From equipment arrival to no-load commissioning, the installation period is only 7-9 days, shortening the installation cycle by more than 40% compared to traditional modular concrete mixing plants. For projects with rigid deadlines and high overseas labor costs, the installation phase alone can save considerable labor and downtime costs.

In the production phase, the belt conveyor system is the core guarantee for achieving the desired production rate. Unlike the intermittent feeding mode of bucket elevators, HZS90 belt conveyor concrete batching plant equipment uses an 800mm wide trough-shaped inclined belt for continuous feeding, achieving a conveying efficiency of up to 120t/h. The aggregate conveying rhythm is perfectly matched with the main mixing cycle, eliminating feeding waiting intervals. The equipment comes standard with a JS1500 twin-shaft forced concrete mixer, with a nominal discharge capacity of 1500L/pan, and is equipped with dual 30kW drive motors. The standard mixing cycle is 60 seconds, and the theoretical capacity is 90m³/h. Under continuous operation, the actual stable capacity can reach 75-85m³/h, with a production rate consistently above 85%, which is 10%-15% higher than comparable bucket elevator mixers. The metering system uses independent weighing units, with aggregate metering error ≤±2%, and cement, water, and admixture metering error ≤±1%. The homogeneity of the finished concrete meets the EN 206 international standard. It can stably produce concrete of all grades from C10 to C50, and is compatible with crushed stone aggregates up to 80mm in diameter, fully covering the diverse material needs of medium-sized projects.

The controllable long-term operation and maintenance costs are a key reason why HZS90 belt conveyor concrete batching plant equipment is repeatedly purchased by overseas customers. The belt conveyor structure operates smoothly with minimal mechanical impact. The core wear parts are the belt and idlers, and replacement and maintenance do not require disassembly of the main building structure, making maintenance approximately 20% less difficult and costly than bucket elevator structures. The main unit liner and mixing blades are made of thickened high-manganese steel, with a service life exceeding 8000 hours under normal operating conditions. The total installed power is approximately 145kW, and its unit energy consumption is among the industry's leading levels. Addressing the pain point of slow overseas after-sales parts supply, Haomei Machinery has deployed forward parts warehouses in key areas, ensuring that core wear parts can be delivered within 7 days. The annual equipment uptime remains consistently above 95%.

Furthermore, 90m3/h belt conveyor concrete batching plant supports multi-dimensional customization: it can be paired with 2-4 100t cement silos, and the unloading height can be adjusted to 3.8-4.2 meters as needed. For high-temperature, sandstorm, and coastal salt spray conditions, corresponding protective configurations can be upgraded. All products are CE certified, meeting the compliance requirements of most countries worldwide.

Essentially, the 90m3/h belt conveyor concrete batching plant is not the most aggressively designed model, but it is the optimal choice for the overall input-output ratio of medium-sized projects throughout their entire lifecycle. With its balanced capacity, controllable costs, and reliable performance, it serves the entire project lifecycle from commencement to completion, which is the core reason why it has become a classic choice in the global medium-sized infrastructure market.
