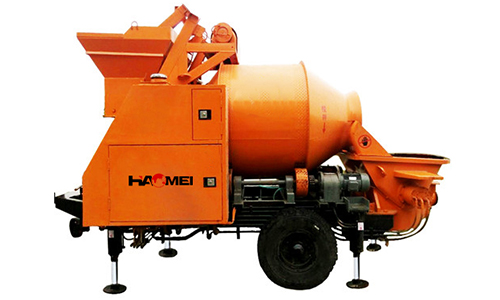

js5oo mixer diesel trailer mounted concrete pump

A js5oo mixer diesel trailer mounted concrete pump has a capacity of 25m3/h. Its concrete mixer is JS500, twin shaft horizontal forced concrete mixer of 500L. JS500 mixer discharges one tank every 60 seconds. One tank discharges 0.5 cubic meter concrete, which is 500L. The mixing motor power is 18.5 (kw), hoist motor power 5.5 (kw), and water pump motor power 1.1 (kw). The overall dimensions (length) X width X height) in transportation state of the mxier is 3050X2530X2680 (mm), while the weight of the whole machine is 4000 (kg). Based on these figures, we can work out that the theoretical output is about 25 cubic meters per hour.

The js5oo mixer diesel trailer mounted concrete pump is also known as a mixing pump or mixing delivery pump, mixing and pumping integrated machine, etc. It functions as a mobile concrete mixing plant integrating mixing system and pumping system. The diesel trailer concrete pump with js500 mixer is mobile, flexible, convenient, efficient, and good in concrete quality, especially suitable for on-site concrete mixing construction in small towns and rural construction markets. It can be widely used in remote and long-distance concrete pouring projects for water conservancy, roads, bridges, tunnels, slope protection, foundations, houses, etc. With a similar function of a 25m3 concrete batching plant but much cheaper, the mixer pump has incomparable advantages in many regions.

Haomei js5oo mixer diesel trailer mounted concrete pump is equipped with a two-bin type batching machine. The batching is simple and efficient. The pump is of high efficiency and fully mechanized operation. The vertical pumping distance is 50 meters, and horizontal pumping 260 meters. It’s labor-saving, need only one person to operate and three people to cooperate. The hydraulic outrigger design is adopted to realize faster movement of the mixer pump. If you need drum mixers, the same capacity can be equipped, too, and the tank body can be rotated 180 degrees to cater for project requirements.
