Silo types for mobile concrete batching plants

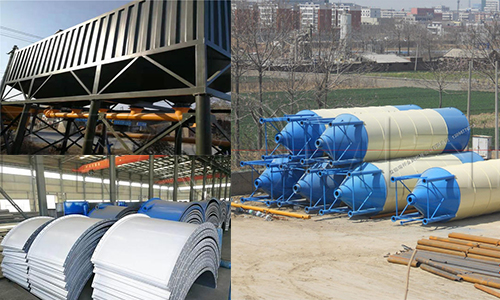

The standard assembly type of mobile concrete batching plant concrete without cement silo can be used to supply cement to the mixing station through bulk cement trucks during temporary works. This is why it is equipped with screw conveyors instead of cement bins. If customers need cement silos, they need to buy them. There are three types of silos for mobile batching plants: horizontal, vertical integrated and vertical piece-type. What are their features, then?

The horizontal cement silo is square, the bottom is supported by several legs, the discharge cone is a square cone, and the silo is welded by a frame composed of corrugated cardboard and profiles, and the overall height is low. The cement vertical silo is a cylindrical structure, and the bottom is supported by four round tube legs. The entire silo is welded with steel structure, and the top is equipped with a dust collector and a pressure safety valve. The horizontal cement silo production workshop is a complete set of production, no foundation installation on site, convenient transportation, very suitable for mobile concrete batching plants.

Vertical cement silo, also called prefabricated cement silo, is suitable for bulk cement and dry fly ash. It has the characteristics of rainproof, moistureproof and easy to use. It is made into thin slices during production, which is convenient for transportation and used after assembly, especially suitable for export. Generally, a 30t vertical cement silo can meet the production needs of conventional mobile batching plants like an yhzs40 mobile concrete batching plant.

Flake cement warehouse refers to the huge storage tonnage, which cannot be welded as a whole during production. It can only be made into flakes and then welded piece by piece. The slab cement silo is a new type of silo body. It is a new type of silo that can be used after being transported to the construction site and assembled by bolts. Although the split cement silo is easy to transport, it takes a long time to install, consumes a lot of manpower and time, and does not meet the requirements of the quick and convenient use of the mobile concrete batching plant. Therefore, if there is no special situation, it is generally not recommended to configure the flaky cement silo in the mobile batching plant.
