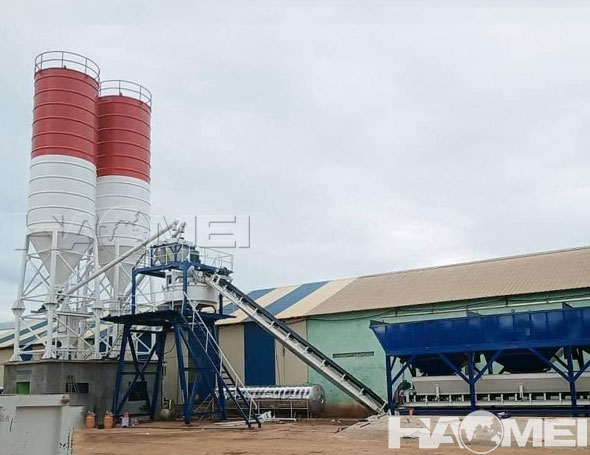

Small Mixing Plant HZS50

The HZS50 small mixing plant is a very popular model among small batching plants, and it is mostly used in engineering projects. This type of concrete mixing plant uses a lifting hopper for feeding, which has a small footprint and the overall price of the equipment is more affordable than the HZS60 concrete mixing plant that also uses a 1m3 concrete mixer as the host.

HZS50 concrete small mixing plant is a complete set of semi-automatic concrete mixing equipment consisting of feeding, weighing, aggregate conveying, mixing, discharging, electrical control, and steel structure components. The theoretical capacity of this type of concrete mixing plant can reach 50 cubic meters per hour per hour, in which the feed volume is 1600L and the output volume is 1000L. The discharge height of HZS50 concrete batching plant is 2.7-3.8 meters (specifically determined according to the height of the loading truck used), and the host model is JS1000 twin-shaft forced concrete mixer (using the lifting bucket feeding method), used in conjunction with the PLD1600 concrete batching machine (The number of batching machine warehouses can be customized according to user needs).

The power of the mixing motor of the HZS50 small mixing plant is 2X18.5KW, the power of the hoisting motor of the concrete mixer is 15kw, and the power of the matching concrete batching machine is (3-5)×5.5kw (where 3-5 refers to the batching machine The number of aggregate bins), plus the power of other equipment, the total power of the entire hzs50 small concrete mixing plant is 127KW. For the transformer of the equipment, please configure the appropriate according to the total power of the whole concrete batching plant.

As a double-horizontal shaft forced mixing equipment, HZS50 small mixing plant has the advantages of small capital, small area, simple equipment configuration, etc., and can produce high-quality and efficient concrete under the condition of accurate metering of the concrete batching machine. It is ideal equipment for bridge construction sites, prefabricated component factories, and medium-sized construction projects.
