50m3/h mobile concrete batching plant configuration and price

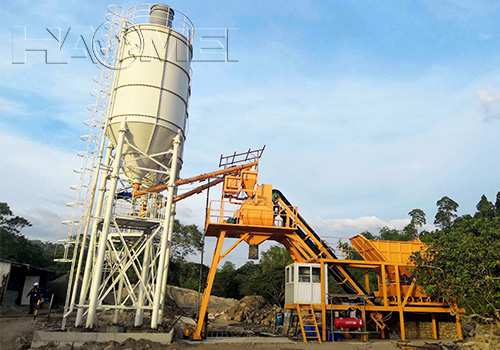

A 50m3/h mobile concrete batching plant is also called a 50-cubic-meter concrete mixing plant, 1m3 concrete mixing plant, 50m3 concrete station, etc. The 1m3 plant is named by the volume of its concrete mixer, JS1000. The theoretical productivity the plant is 50m3/h. Its configuration is similar to that of a stationary concrete plant of 50m3/h, including a concrete mixer, a batching machine, cement silos, screw conveyors, water metering and admixture metering devices, control room and so on. The host model of the plant is JS1000 concrete mixer, featured by excellent mixing quality and high mixing efficiency. The batching machine is of the model PLD1600, featured by accurate and uniform batching. Considering its strong mobility, the plant is usually used as an engineering plant for road or small project construction, but it can serve as a commercial plant if you want.

      The configuration of the 50m3/h mobile concrete batching plant is as below.

1 set js1000 concrete mixer

1 4-bucket batching machine with a respective volume of 6m3

1 belt conveyor of 400t/h

4 sets of weighing devices with capacity and accuracy as below: aggregate 2000kg±2%, cement 600kg±1%, water 300kg±1%, additive 20kg±1%

1 trailer of 15km/h

2 100-ton cement silos

2 screw conveyors

1 control room

1 dust remover

For a 50m3/h mobile concrete batching plant, the overall price is relatively stable and contains more main equipment. If customers have a detailed understanding of their needs, welcome to contact us. When purchasing, you need to pay attention to the following points:

1. The control system is divided into automatic and semi-automatic. There is a price gap between the two. Automatic addition is more convenient, and the semi-automatic type is lower in price.

2. The purchase of cement silo needs to show according to the actual situation that the new mobile concrete mixing plant itself does not have a cement silo. It is recommended that 1 square ton cement silos be sufficient for the 50m3/h mobile concrete batching plant.

3. The tractor head needs to be purchased separately. If you have the tractor head, you need not to buy it. Our designer will be responsible for debugging the head and the body part of the 50m3/h mobile concrete batching plant.
