A yhzs25 mobile concrete batching plant is among the most popular mini concrete plants in commercial concrete and project concrete production. With a theoretical capacity of 25 cubic meters per hour, the plant has a similar configuration with a 25m3 stationary concrete mixing plant, including a JS500 forced mixer, a PLD800 batching machine, a 100t cement silo, a 219 screw, a weighing measurement system, an electric control system and an electrical system.
Concrete mixer
The concrete mixing machine of a yhzs25 mobile concrete batching plant is a JS500 twin shaft compulsive concrete mixer. The mixing system of 500 concrete mixer is composed of an electric motor, a pulley, a reducer, an open gear, a mixing drum mixing device, an oil supply device and other components. The working principle is as followed. The motor drives the two-stage gear reducer, and the two shafts of the reducer drive the two horizontal agitating shafts to rotate at the same speed in the opposite direction through the two split gears.
Batching system
A yhzs25 mobile concrete batching plant is equipped with a PLD800 concrete batching machine, which is composed of feeding mechanism, weighing system, electrical control system and other components. The feeding mechanism is arranged in the shape of "product", fed by the belt conveyor. The weighing is realized by a lever plus a single sensor, thus the measurement is accurate.
Conveying system

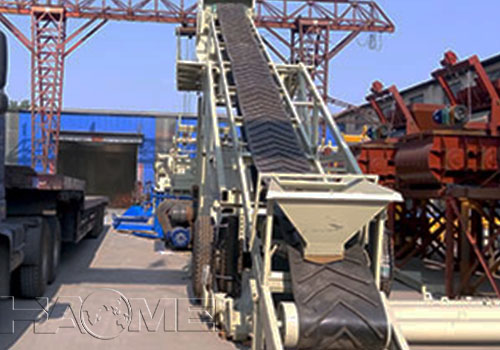

The yhzs25 mobile concrete batching plant belt conveyor is an ideal high-efficiency continuous transportation equipment, featured by high efficiency, continuous transportation, reliable operation and easy control.
Control System
The control room of the yhzs25 mobile concrete batching plant is at the bottom of the main chassis, and the automatic control system of the mixing plant is built-in. The control room serves as the front support point of the whole plant in working state. It is stored in the hollow of the bracket in travel state of the plant.
The yhzs25 mobile concrete plant has a small footprint and low investment cost, suitable for most general-scale engineering projects. The configuration above can be adjusted according to your practical needs.
