Z Fold Boom Pump

2024-10-31 15:05:36

Z fold boom pump, often called Z fold boom pump truck or Z fold concrete pump truck, is a kind of concrete pump whose boom system adopts the Z type folding method. Z type folding boom pump is specially used for concrete conveying, which combines the characteristics of the boom pump and the traditional concrete pump, and has the flexibility and high efficiency. Z fold concrete boom pump is widely used in the building construction, bridge construction, tunneling construction and other It is widely used in building construction, bridge construction, tunnel construction and other occasions where concrete pouring is required.

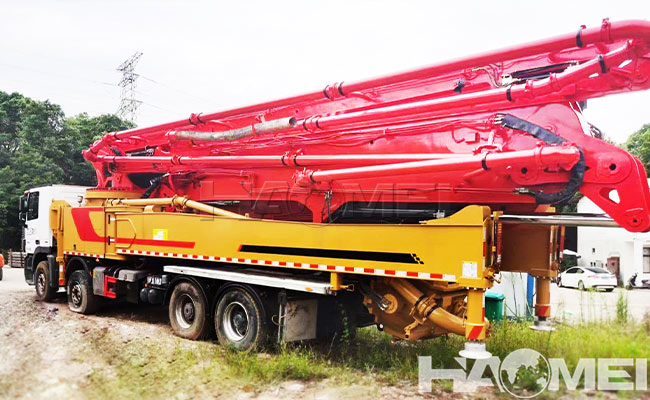

z fold boom pump

The folding arm length of the z fold boom pump is generally between 20 meters and 52 meters. And the structure of z fold concrete boom pump truck are:

- Boom folding mode: The folding mode of Z-fold boom makes the boom move quickly when opening and folding, and occupies relatively small space (especially the width space). The connection between the ground part of the boom and the body is Z-shaped bending, so it is called Z-shaped folding boom.

- Boom composition: the boom system mainly consists of multi-section boom, connecting rods, cylinders, connectors and other articulated folding and unfolding planar four-link mechanism. z-fold boom pump trucks generally use a smaller number of sections of the boom, such as four-section boom.

- Other components: In addition to the boom system, Z type fold concrete pump truck also includes pumping system, turret, mixing device, chassis and other components. The pumping system uses the power of the chassis engine to pressurize the concrete in the hopper and send it into the pipe, which is attached to the boom. The turret provides a stable base for the boom on which the whole boom can rotate. The mixing unit, on the other hand, provides secondary mixing of the concrete in the hopper to prevent it from segregating.



Key Features of z fold boom pump are:

- Z-Folding Boom Design:

The design of the Z-folding boom allows the boom to extend and retract more flexibly to adapt to complex construction environments.

The folding boom is able to complete a larger working radius in a smaller space, which improves the working efficiency.

- Efficient Concrete Conveying:

Equipped with a powerful pumping system, the equipment can quickly and stably deliver concrete to the designated location, reducing construction time.

- Easy operation:

Most of the Z type folding boom pumps are equipped with advanced control system and friendly operation interface, which is easy for operators to get started quickly.

- Wide applicability:

Suitable for different types of concrete, including self-leveling concrete with good fluidity and ordinary concrete with poor fluidity.

- Height adjustable:

The boom height of the equipment can be adjusted according to the construction demand, and it can work at different heights.



Z fold boom pump truck is widely used in urban construction, municipal maintenance, busy road maintenance in large city centers and other fields. Its efficient mixing capacity and flexible mobility enable these projects to complete construction tasks faster and better.

- Construction: for concrete pouring in high-rise buildings, residential neighborhoods and commercial buildings.

- Infrastructure construction: Concrete delivery for bridges, tunnels, roads and other projects.

- Precast production: used in factories to produce precast concrete parts.



Z fold boom pump is an efficient and flexible concrete delivery equipment suitable for a wide range of construction and infrastructure projects. Its unique folding boom design makes construction in complex environments more convenient. With the construction industry's increasing demand for efficiency and quality, the application of Z fold concrete boom pump will have a broader future.
