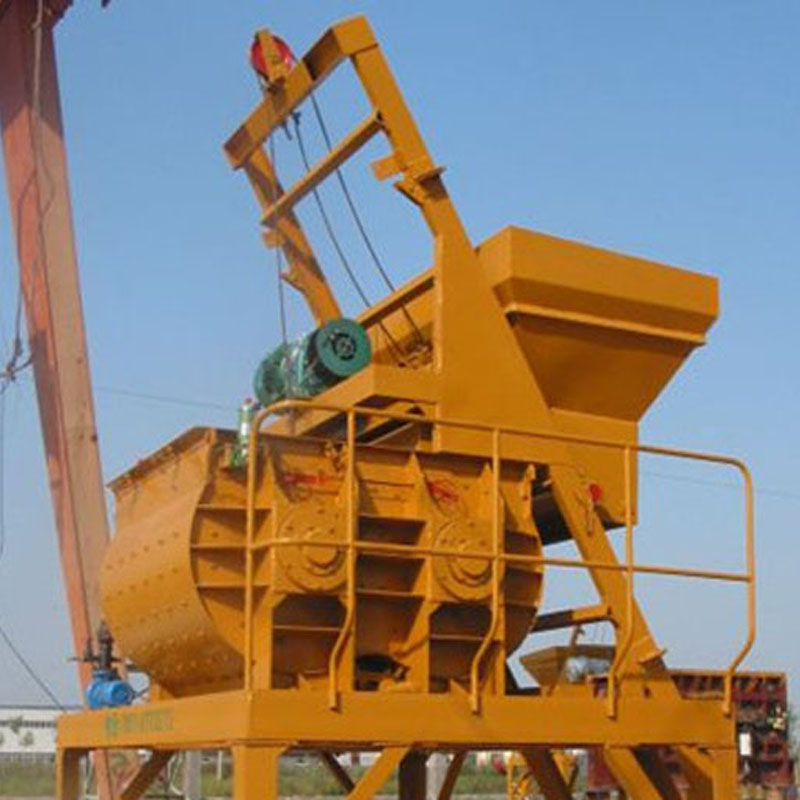

Do you know the system structure of JS750 forced concrete mixer

750 forced type concrete mixer is the JS750 concrete mixer as we often refer to. It is often used as the main engine of HZS35 concrete mixing station. Do you know the system structure of JS750 forced type concrete mixer?

1. Mixing system

JS750 forced concrete mixer installs several groups of leaves with the same structure two stirring shaft, but its fluctuation are stagger certain space before and after the mixing material within two mixing drum to get fast and uniform stirring.

2. Drive device

JS750 forced concrete mixer mixing motor is directly installed in a three-stage gear reducer box, which makes the mixture get fast and uniform stirring within two mixing drum. The output shaft is driven by a pair of gears and sprocket respectively to drive two horizontal agitator shafts to rotate at the same speed.

3. Discharging system

JS750 concrete forced mixer discharge system consists of discharging door and manual handling rod. Generally speaking, the discharge height of JS750 concrete forced mixer is the final discharge height of hzs35 agitator station. The unloading door is installed at the bottom of JS750 twin shaft concrete mixer, and the motor discharge is realized through electric push rod. Electric push rod bearing is installed on the chassis, or so above the discharging door, there installs a limit switch, so as to control the open and close position of the discharging door, by adjusting the airtight of the location which can ensure the discharging door seal. Manual discharge lever is used for discharging the material in case of emergency discharge and electric push rod failure in case of temporary power failure.

4. Water supply system

The water supply system of JS750 concrete mixer is composed of water pump, throttle valve, cleaning device and spraying device. Throttle valve can adjust water flow, and the total water supply has time relay to adjust.
