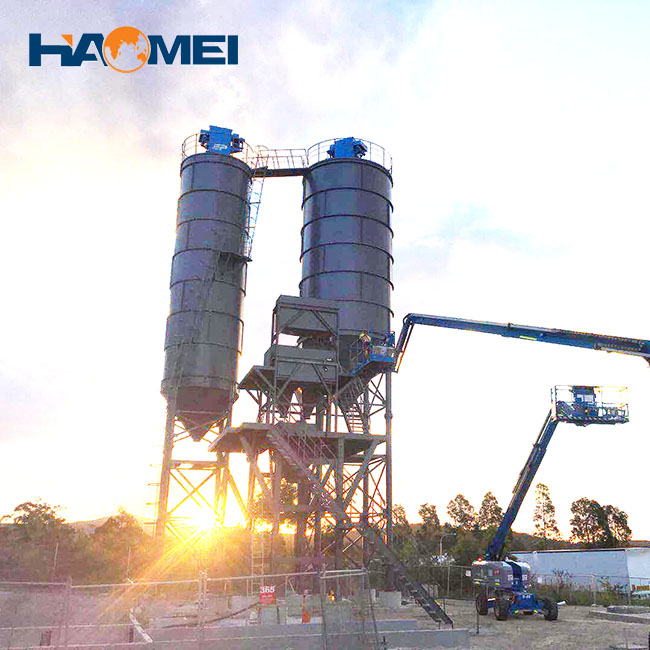

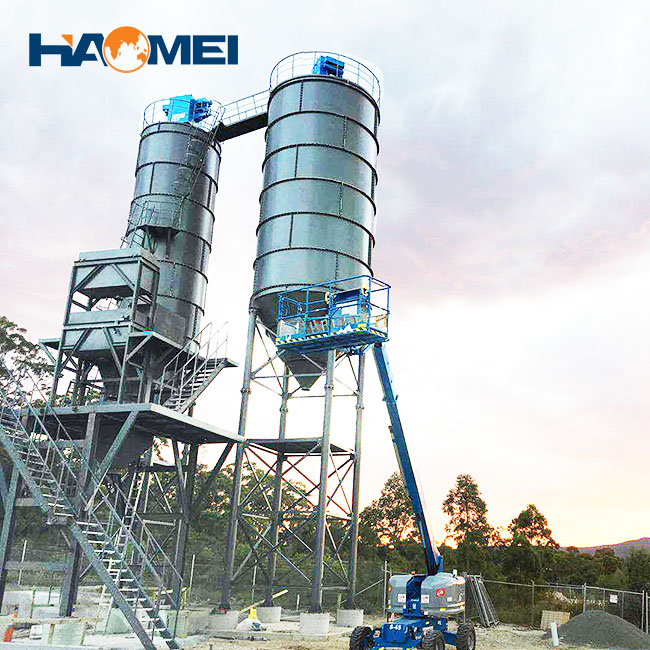

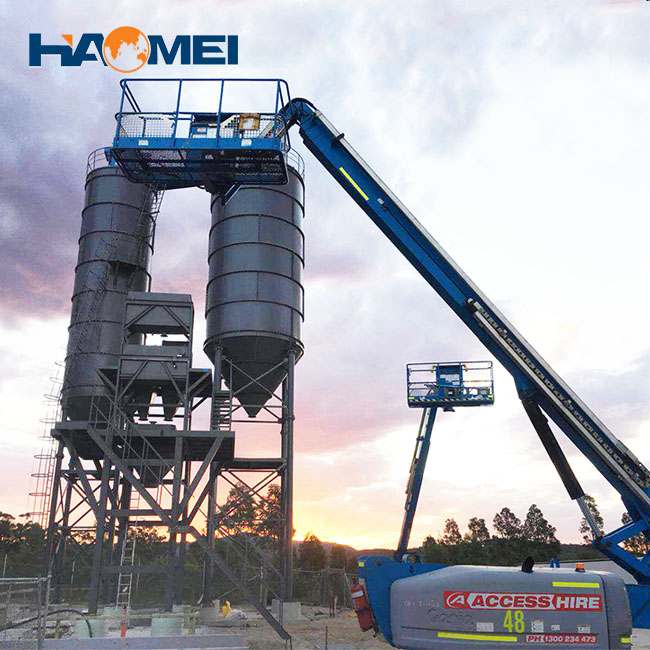

A dry mix concrete batching plant has no concrete mixer machine, composed of an aggregate batching machine, a cement supply system, a water supply system, a cement weighing system, a water weighing system, a control system, etc. The main difference of a dry mix concrete batch plant from an ordinary plant lies in the concrete mixing place. A dry mix plant, deprived of a mixing machine, functions only to weigh and mix part of the materials. The aggregates and powders are weighed and mixed, then directly discharged into the concrete mixer truck with water in its tank. A dry mix concrete batching plant is mainly used in areas with a large area and sparsely populated areas to avoid segregation of wet concrete due to long-distance and long-term non-stop movement in the mixer truck, which will deteriorate the quality of the concrete.
Specifications of dry mix concrete batching plants
|
Type |
HZS25 |
HZS35 |
HZS50 |
HZS75 |
|
|
Theoretical production capacity(m3/h) |
25 |
35 |
50 |
75 |
|
|
Aggregate Bin volume(m3) |
3.2 |
7.3 |
8.3 |
12 |
|
|
Weighing Accuracy |
Aggregate (KG) |
1500Kg ±2% |
2200Kg ±2% |
3000Kg ±2% |
4500Kg ±2% |
|
Cement(KG) |
300Kg ±1% |
450Kg ±1% |
600Kg ±1% |
1500Kg ±1% |
|
|
Fly ash(KG) |
|
|
400Kg ±1% |
600Kg ±1% |
|
|
Water (KG) |
200Kg ±1% |
200Kg ±1% |
400Kg ±1% |
600Kg ±1% |
|
|
Additive(KG) |
|
30Kg ±1% |
50Kg ±1% |
50Kg ±1% |
|
|
Total power(KW) |
45Kw |
60Kw |
115Kw |
110KW |
|
|
Discharging height(M) |
3.8 m |
3.8 m |
3.8 m |
3.8m |
|
|
Gross weight(T) |
7.7 |
15 |
40 |
50 |
|
|
Type |
HZS60 |
HZS90 |
HZS120 |
HZS180 |
HZS240 |
||
|
Theoretical production(m3/h) |
60 |
90 |
120 |
180 |
240 |
||
|
Aggregate Bin volume(m3) |
8.38 |
12 |
20 |
30 |
40 |
||
|
Belt conveying Capacity(t/h) |
300 |
450 |
550 |
650 |
900 |
||
|
Weighing Accuracy |
Aggregate (KG) |
3000Kg ±2% |
3000Kg ±2% |
2200Kg ±2% |
3000Kg ±2% |
4200Kg ±2% |
|
|
Cement(KG) |
1500Kg ±1% |
1500Kg ±1% |
1200Kg ±1% |
1800Kg ±1% |
2200Kg ±1% |
||
|
Fly ash(KG) |
600Kg ±1% |
900Kg ±1% |
400Kg ±1% |
500Kg ±1% |
800Kg ±1% |
||
|
Water (KG) |
600Kg ±1% |
600Kg ±1% |
500Kg ±1% |
800Kg ±1% |
1000Kg ±1% |
||
|
Additive(KG) |
50Kg ±1% |
50Kg ±1% |
50Kg ±1% |
80Kg ±1% |
80Kg ±1% |
||
|
Total power(KW) |
|
120Kw |
165Kw |
130Kw |
170KW |
220KW |
|
|
Discharging height(M) |
|
3.8 m |
4.1 m |
4.1m |
4.1m |
4.1m |
|
Features of dry mix concrete batching plants
1. Very suitable for areas with large areas and sparsely populated areas.
2. A dry mix concrete batch plant need no concrete mixer, and has low investment and high return.
3. High efficiency and energy saving. No need to stir, save time and electricity.
4. Computer control, the entire production process can be displayed intuitively on the screen.
5. Precise batching system (aggregate, cement, water, additives, etc.)
6. The belt feeding system is continuous and efficient.
A dry mix concrete batch plant is especially suitable for small engineering projects requiring lower about the quality of concrete, but it is not suitable for mass production, for the concrete quality is not so good as concrete from commercial plants.
Price
Without a concrete mixer, a dry mix concrete batch plant is cheaper than plants of the same capacity. However, you will have to equip concrete mixers to make up for this part. Specific prices can be obtained by contacting us.
