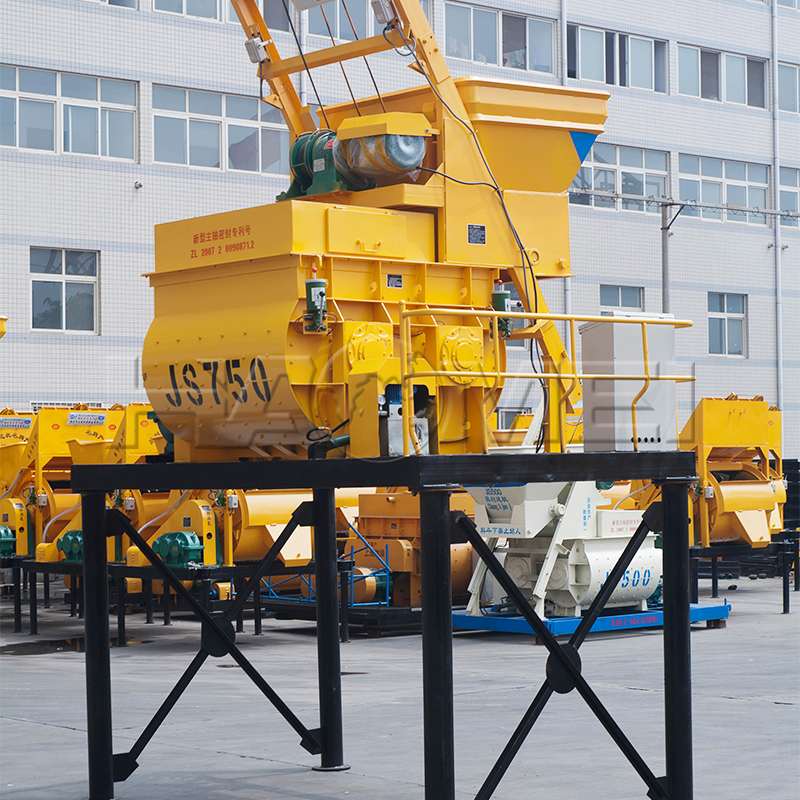

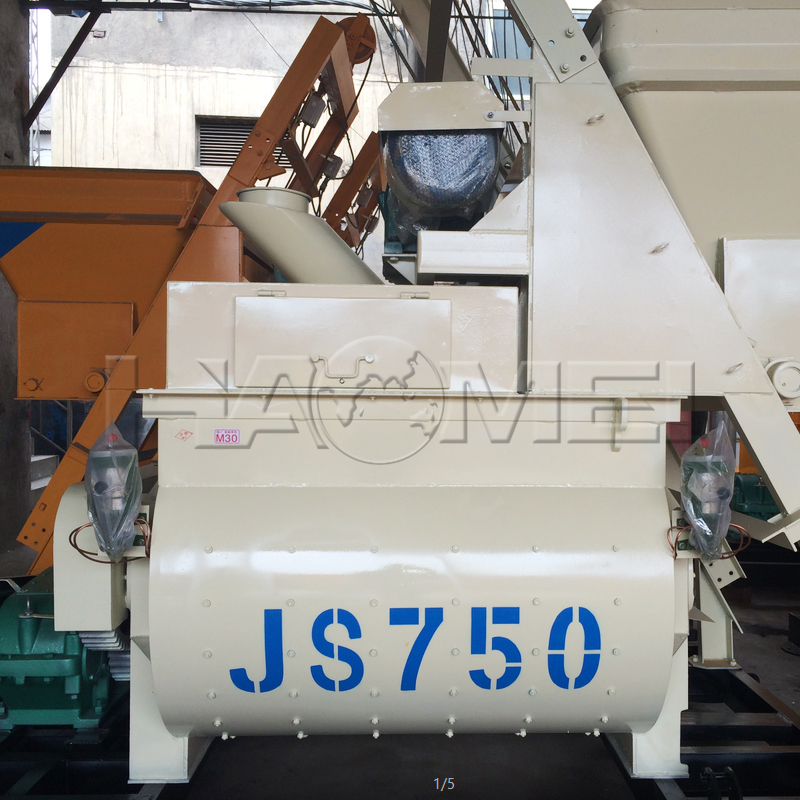

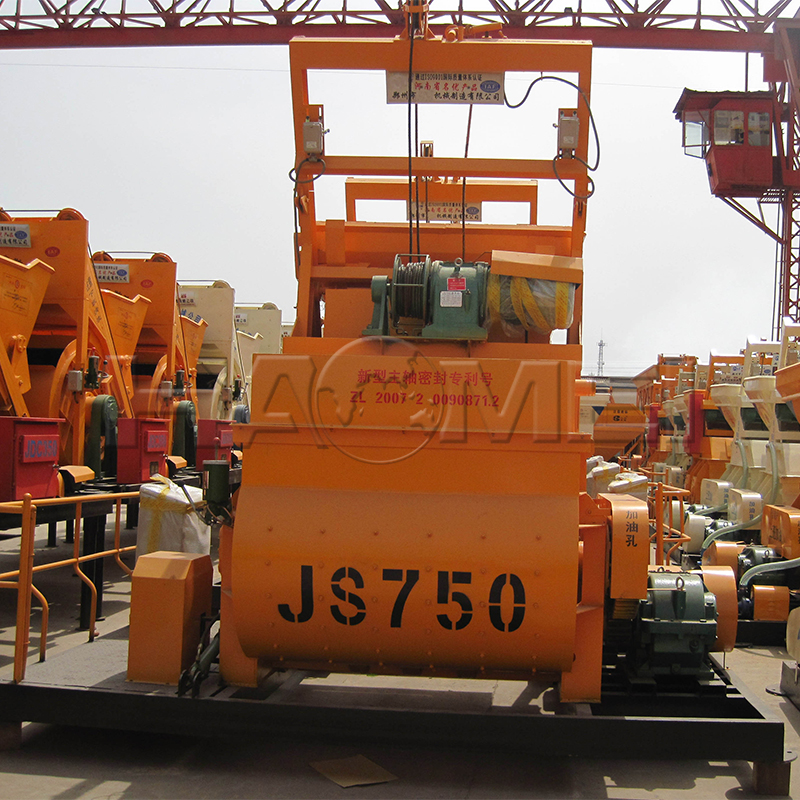

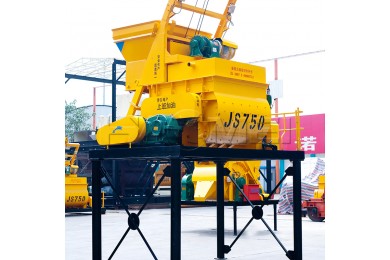

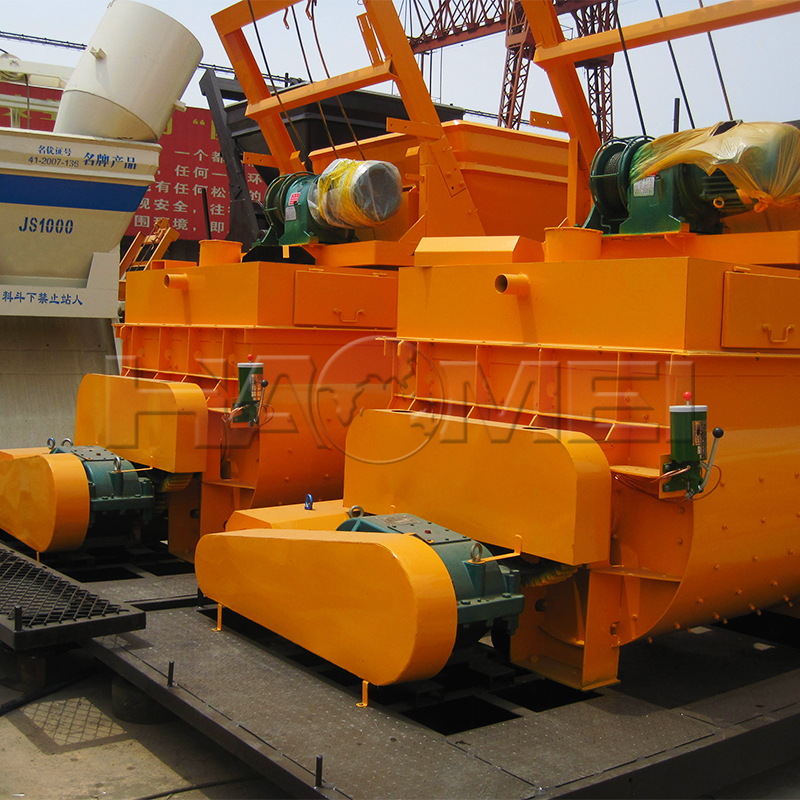

1.Description of JS750 Twin Shaft Concrete Mixer:
1. JS750 compulsory concrete mixer is an engineering compulsory mixer. JS750 concrete mixer discharge 0.75 each party, also known as 0.75 square concrete mixer, which often used as a host of HZS35 wet mix concrete batching plant.
2. JS750 concrete mixer theory productivity 35m3 / h, duty cycle time is 60s, with a stirring force, small power consumption, strong power, built-in vortex mixer to prevent the material unity knot positions, etc., including the compulsory mixer planetary mixer, vortex mixer, agitator shaft, nesting agencies, discharge port , stand mixer and chassis components.
3. JS750 twin shaft compulsory concrete mixer is suitable for all types of large, medium and small prefabricated factories and roads, bridges, water conservancy, port and other industrial and civil engineering, which can mix dry concrete, plastic concrete, fluidity concrete, lightweight aggregate concrete and mortar variety, which is a high-efficiency model and widely used.
2. The Parameters of JS750 Concrete Mixer:
Specification |
Value |
Productivity |
35m3/h |
Discharging Volume |
750l |
Charging Volume |
1200l |
Mixer Capacity |
0.75m3 |
Aggregate Size |
60/80mm |
Working Circle |
60sec |
Mixer Motor Power |
30kw |
Lifting Motor Power |
7.5kw |
Pump Motor Power |
1.1kw |
Weight |
5000kg |
Dimensions |
3550x2250x2800mm |
