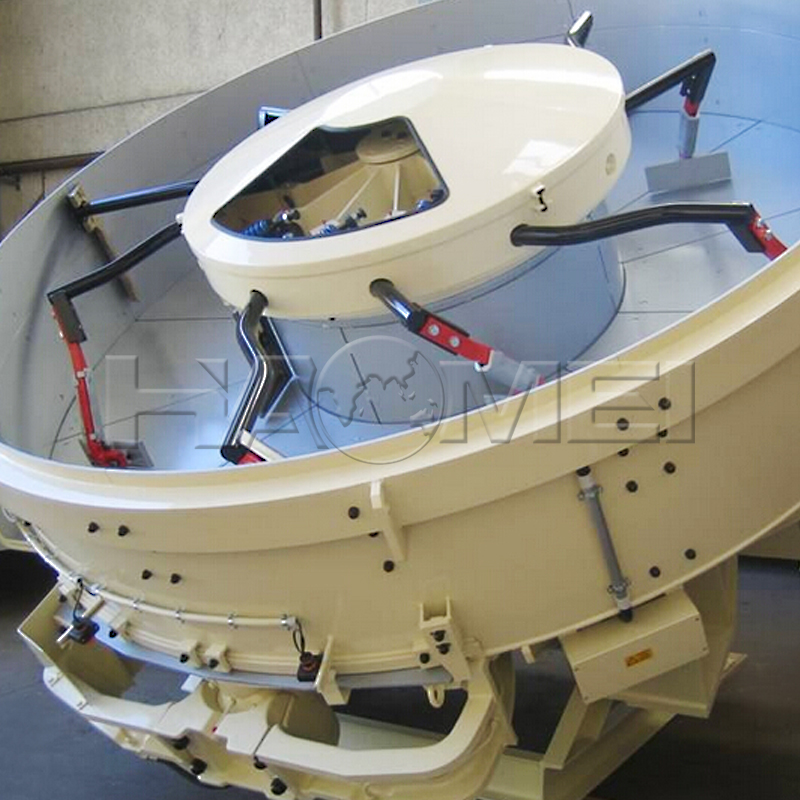

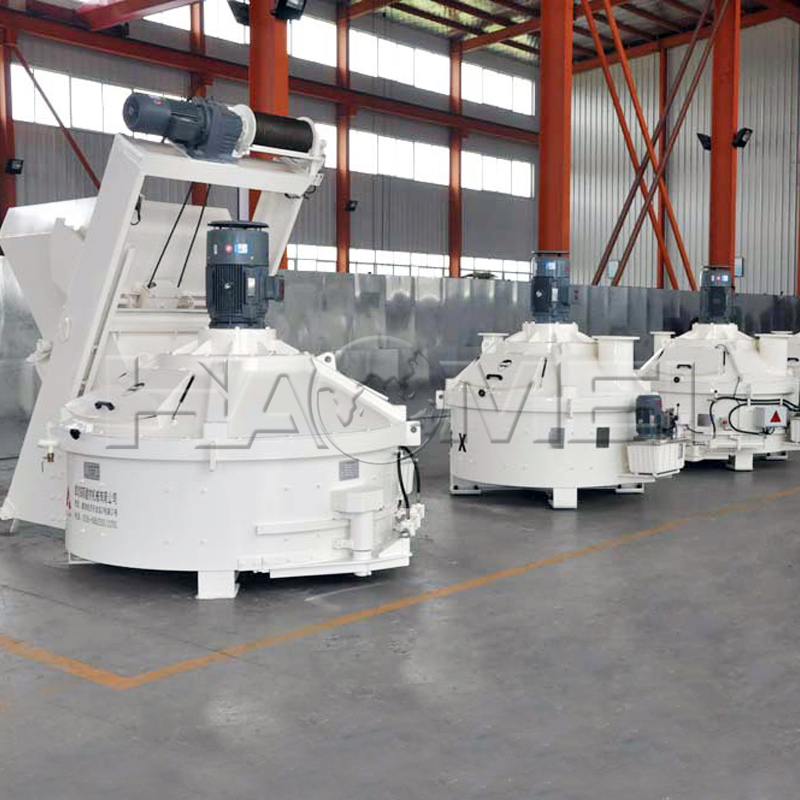

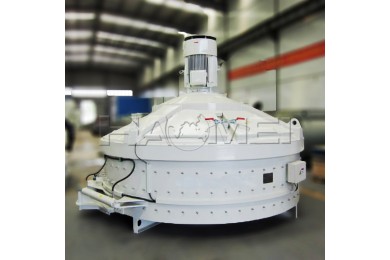

Planetary Concrete Mixer

1. Description of Planetary Concrete Mixer:

Planetary concrete mixer will be suitable for high purity concrete mixing plant, which can make the material more uniform mixing, and wil be the best choice for building blocks and precast industry;

1. This planetary concrete mixer can stay more time by way of oil / manual dual mode switch discharge door.

2. Economic and durable, convenient maintenance;

3. Compare with the same amount of twin shaft concrete mixer, the planetary concrete mixer can be highly low, easy mixing station layout planning;

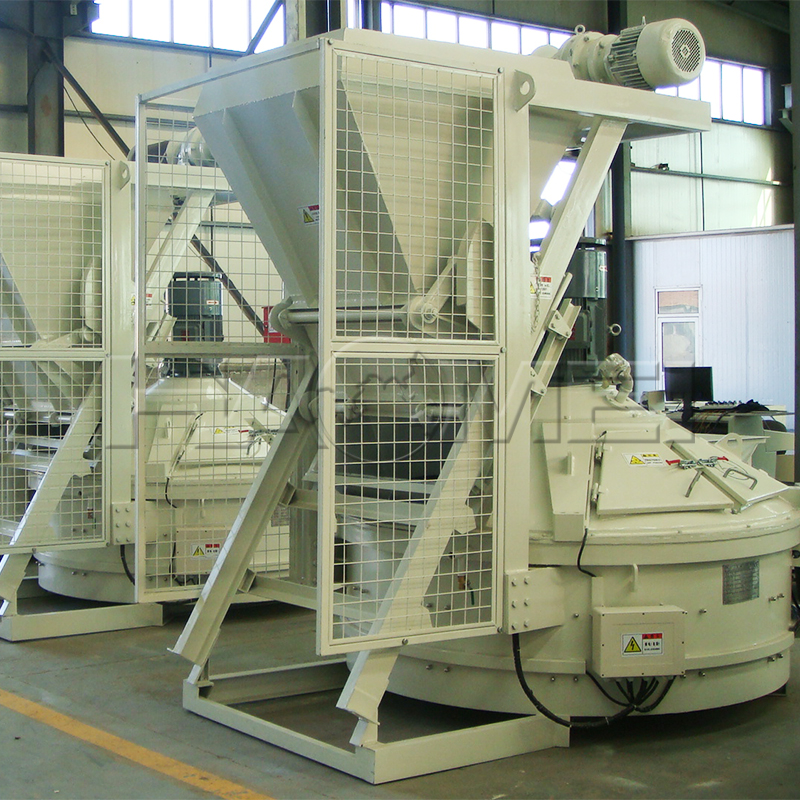

4. Optional aggregate lifting device;

5. 0.5m3~2.0m3 capacity specifications of planetary concrete mixer can be optional.

2. Introduction of Planetary Concrete Mixer Components:

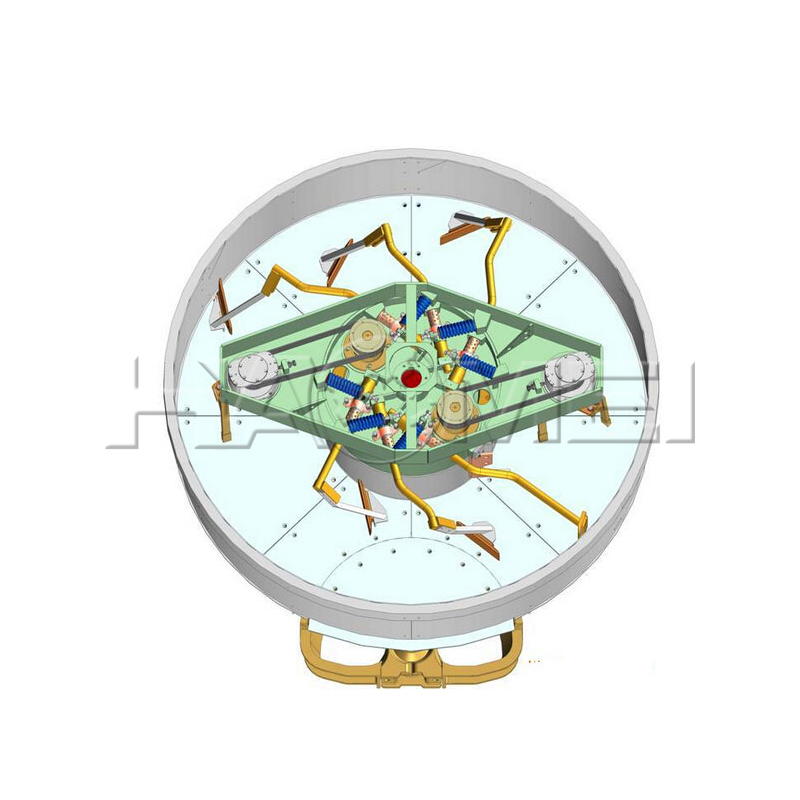

1. Reduction gearbox: The gearbox unit, specially designed for balanced distribution of power to the various mixing device, which ensures a high efficiency and low noise rotation.

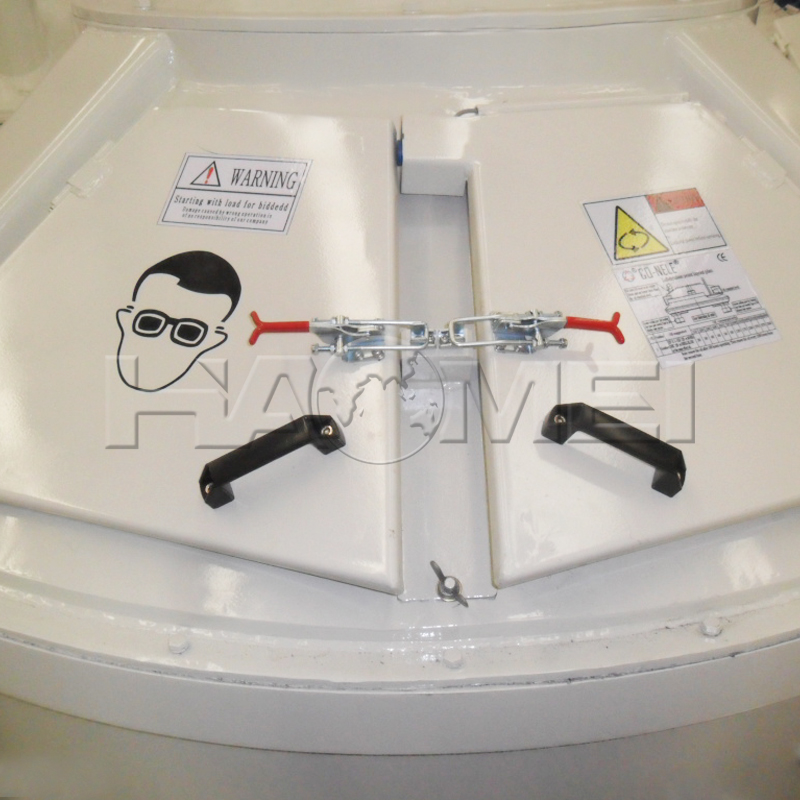

2. Maintenance Access: The large access facility is easy to maintain and clear. The key-operated safety switch guarantee the motor can not be powered with cover open.

3. Hydraulic Unit:Hydraulic unit equipped with manual pump allow the door to be open in case of electric failure.

4. Discharging Door: The discharging door is equipped with limit switches which can be opened in any angle.. Maximum three discharging doors are available.
