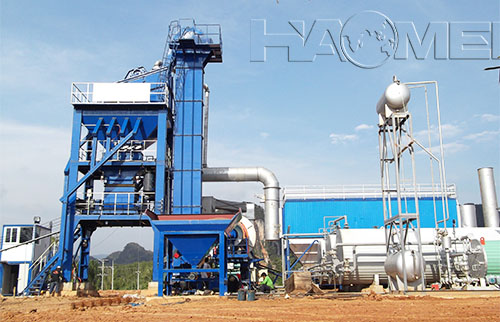

Asphalt mixing plant 40 ton

An asphalt mixing plant 40 ton is an lb500 asphalt mixing plant. The plant consists of a cold aggregate supply system with a 4*4 cubic meter storage warehouse, an Italian oil burner with a fuel consumption ≤500kg/h, a dust removal system with a wet dust collector, a powder supply system with a 0.5 cubic meter powder storage bin (adjustable), an asphalt supply system with a 20 cubic meter asphalt tank (adjustable), a mixing main building frame(including a double shaft mixer of 500kg/batch and a Siemens motor of 22kW), a pneumatic system of an air compressor of 1.05Nm3/min, an asphalt finished product storage warehouse of 30 tons and a PLC control system (language optional).

Some key parts of the configuration above are as below. The warehouse has 4 hoppers of 6m3 each, with a capacity of 1000m3/h or less. The vibrating screen has 4 layers per square meter, and the hot aggregate bin has a capacity of 12 tons for each storey. The mixing drum holds 500kg materials. The mixing tank has a capacity of 30000L. The thermal oil furnace consumes 200,000 kcol oil per hour, and the mixed asphalt warehouse has a 50-ton capacity.

The asphalt mixing plant 40 ton has the following features. First, its drying system has a high thermal efficiency and less energy consumption. Innovative use of software co simulation technology, optimize the structure design of the lifting blade of the drying drum, optimize the material residence time, ensure the aggregate heating temperature, make the aggregate form a uniform curtain, control the exhaust gas temperature between 90 ° c-110 ° C, make the drum realize high heat exchange, exhaust gas will not condense, also will not lose fuel due to high temperature. The thermal efficiency is as high as 90% and the energy consumption is reduced by 15%. Second, the dust removal system realizes intelligent dust removal to ensure safety of the plant. The effective working area of Nomex filter bag can reach 98%, reaching the European standard (< 20mgnm3), realizing the stability of negative pressure in the drum, thus ensuring the production quality of asphalt mixture. Third, the mixing system is wear resistant, durable, and energy saving. The wear-resistant parts imported from Sweden made by Seiko have long service life. The simulation optimization technology of material motion stirring degree is adopted to ensure that each pot is stirred evenly, the quality of finished product is controlled stably, the stirring efficiency is increased by 25%, and the energy consumption is reduced by 20%. We customize 40-ton asphalt mixing plants based on clients’ requirements. Welcome to contact us for a price!
