Station asphalt mixing plant for sale

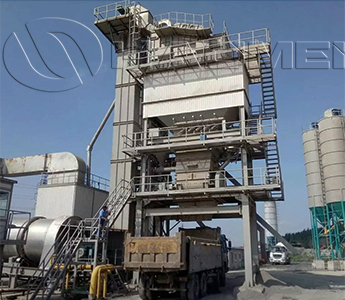

A station asphalt mixing plant is a stationary or fixed plant, named in comparison to a mobile asphalt plant. It has no wheels or trailers, suitable for fixed projects of stable asphalt demand in quantity. The station plant takes more time to install, but less money to purchase. Its structure is complete and fully designed, lays the foundation for production of high quality asphalt. Haomei stationary asphalt plants have a capacity from 40t/h to 400t/h. Models include LB500, LB800, LB1000, LB2000, LB3000, LB5000 etc.

As a hot mix asphalt plant supplier, Haomei strives to supply top quality station asphalt mixing plants for its clients. The effort begins with primary batching silos. Each silo is equipped with a variable frequency speed reducer and material alarm device, which is controlled by a computer in the central control room. It can accurately and automatically adjust the feeding volume of the batcher according to the production volume and grading requirements of the equipment. The drying and heating system adopts advanced lifting plate structure and airtight technology, improving the heat exchange rate to 88%. Improved material curtain structure of the drying drum realizes even and high efficient drying. The burner adopts low pressure oil and high pressure wind atomization, which can meet the use of different types of fuel under various working conditions. In order to facilitate installation and improve stability, the hot material lifting system adopts a frame structure. The highlights of the hot material system include: advanced non-reverse and automatic tensioning devices, wear-resistant and high-temperature-resistant plate chains, and a large safe operation platform on the top. The bearing of the vibrating screening system is selected from Japan NSK, which is resistant to high temperature, vibration and long life. The motor is equipped with anti-phase braking to reduce the vibration and dust of the host. The inclined structure makes the screening more thorough, and the insulated screen shell reduces the loss of hot material. Bearings are lubricated by immersion oil, no need to refuel every day, easy maintenance. The asphalt mixing system is highly wear-resistant, with a service life of more than 100,000 batches, up to 300,000 tons, and easy replacement. The control system adopts Siemens control hardware, the strong and the weak current are separated, and the screen display adopts the full animation design, and the operation is simple and clear.

In addition to station asphalt mixing plants, we supply mobile asphalt mixing plants, too. If you need cheaper or smaller ones, drum asphalt plants are also available.
