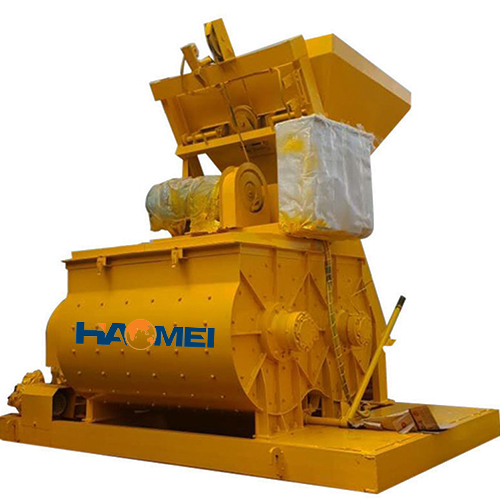

js500 skid steer gravity twin shaft concrete mixer

A js500 skid steer gravity twin shaft concrete mixer has an output of 0.5m3 per hour. Also known as a 0.5 cubic meter concrete mixer, it serves as a separate mixing machine or a main mixing machine for a 25m3 concrete batching plant. The theoretical capacity of the mixer is 25m3/h, working recycling time 60s, and weight 3900kg, featured by reliable transmission, small noise, low energy consumption, compact structure, stable operation, simple operation, good mixing quality, large mixing power and other advantages. The standard discharge height of this type of concrete mixer is 1.6m, 2.7m, 3.8m (or customized by the user). The user can configure a dump truck or a concrete mixer truck for use. The 1.6m discharge height can be directly matched with the concrete pump.

The mixing system of the skid steer gravity twin shaft js500 concrete mixer is composed of a motor, a pulley, a reducer, an open gear, a mixing drum mixing device, and an oil supply device. The motor is directly connected to the cycloid reducer, and the two output shafts of the reducer drive the two horizontally arranged stirring shafts to rotate at the same speed in the reverse direction through two pairs of open gears. The spiral-shaped stirring arms are high in strength, good in wear resistance and low in friction force. The adoption of high wear-resistant alloy cast iron liners makes the equipment safer and more durable. The equipment adopts a new connection method of mixing arm and lifting device, which further improves the reliability of the whole machine. All these enable the mixer to stir the materials efficiently, uniformly and reliably.
