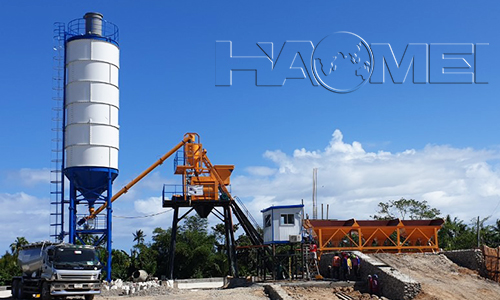

hzs50 stationary concrete batching plant configuration

The standard configuration of an hzs50 stationary concrete batching plant consists of the batching, weighing, conveying, mixing and controls systems. Detailed devices include a concrete mixer, a concrete batching machine, two cement silos with screw conveyors, a weighing system and a control system. Models and numbers of the devices are shown in the form below.

The main machine of the hzs50 stationary concrete batching plant adopts the JS1000 double-shaft forced concrete mixer, which has the characteristics of good mixing concrete homogeneity, short mixing time, long service life of wearing parts, and convenient operation and maintenance. The 50m3 concrete mixing plant adopts electronic weighing, microcomputer control, digital display and other control technologies of new design ideas. The electronic weighing has a leveling buffer device, an automatic compensation function, and a high measurement accuracy. The discharge height of the plant is 3.8m, the measure error 2% for aggregates and 1% for liquids and powders, and the overall size around 32m*16m*17m.

The hzs50 stationary concrete batching plant is a semi-automatic concrete mixing set of equipment composed of feeding, batching, mixing, electrical control systems and steel structure components. It is a mandatory and high-efficient equipment that can produce plastic, dry and hard concrete and other types of concrete. With high production efficiency, it is widely used in large and medium-sized building construction, road and bridge engineering and precast plants for the production of concrete products. It is an ideal equipment for producing commercial concrete.
