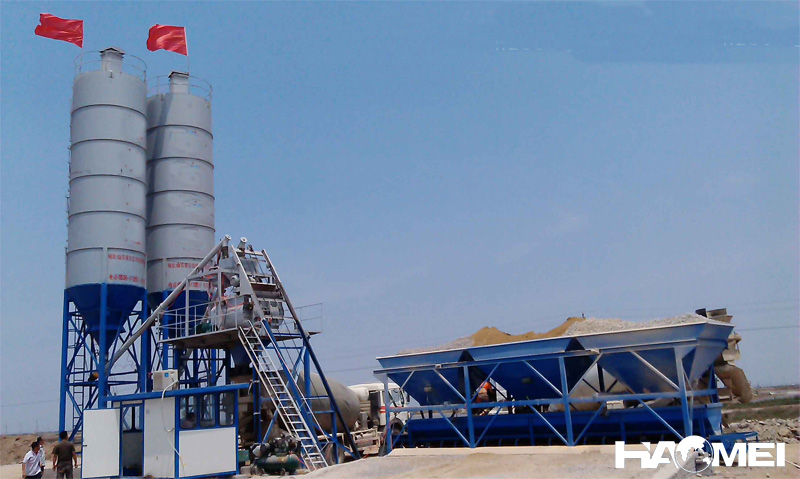

Solution to the correct lubrication of HZS50 concrete mixing station

Fixed Concrete mixing stations need a lot of lubrication, so lubrication must have a certain time interval and there are certain ways to achieve the best lubrication. But many users are not very clear about this time interval and method. Let’s introduce it.

Lubrication point of HZS50 concrete mixing station supply 1: The reversing roller bearing of the feeding belt conveyor is lubricated once every three months by means of No. 4 calcium base grease and oil gun lubrication;

Lubrication point 2: The grooved type bearing of the feeding belt machine is changed with the No. 4 calcium base grease during the maintenance of the RMC batching plant;

Lubrication point 3: The flat-toothed bearing of the feeding belt machine is changed with the No. 4 calcium ester during the inspection;

Lubrication point 4: The tensioning device of the feeding belt conveyor is lubricated by oil gun lubrication every four months with 4 good calcium ester;

Lubrication point 5: the electric drum of the feeding belt conveyor requires installation instructions for lubrication;

Lubrication point 6: the butterfly valve of the transition storage hopper is lubricated every three months by means of lubricating oil No. 4 with a grease gun;

Lubrication point 7: The reversing roller bearing of the weighing belt machine is lubricated by the oil gun lubrication every 3 months with the 4th calcium ester;

Lubrication point 8: Weighing the belt conveyor type bracket bearing uses the No. 4 calcium ester to change the oil during maintenance;

Lubrication point 9: Weighing belt conveyor flat bearing, bearing oil is replaced with No. 4 calcium ester during maintenance;

Lubrication point 10: Weighing belt machine anti-biased roller bearing is lubricated once every six months with the 4th calcium ester by oil roller lubrication.
