Concrete mixer pump truck for sale

We have 15-30m3 concrete mixer pump truck for sale. There are two types: concrete pump truck + mixing tank, and concrete mixer pump + chassis truck.

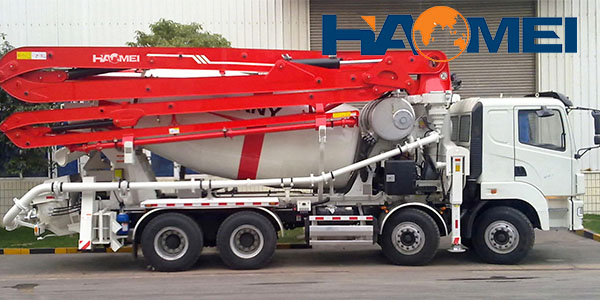

The first type of concrete mixer pump truck is an improved mixing pump truck based on the concrete pump truck. It has the functions of concrete transportation, pumping and distribution, featured by compact structure, high efficiency and good flexibility. In short, the concrete mixer pump truck is the combination of the mixing truck and the pump truck. The arm frame, material port, gate valve, main oil cylinder, delivery cylinder and other important pumping work units of the pump truck are installed on the multiple-bridge bearing chassis. In addition, small rollers, functional water tanks, oil tanks and other storage units that can store a small amount of concrete are added, which are structured as machines that can feed and pump independently. Due to the limitation of the chassis, the mixer truck has only a short boom. The concrete provided by the pump truck can meet the demand of small volume pumping operation and supplement shortage in concrete in large volume pumping to realize continuous operation, which is time-saving and economical. It is a novel concrete operation plan to use the mixer truck in changeable construction situation.

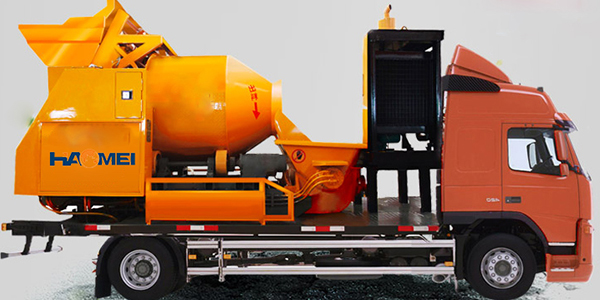

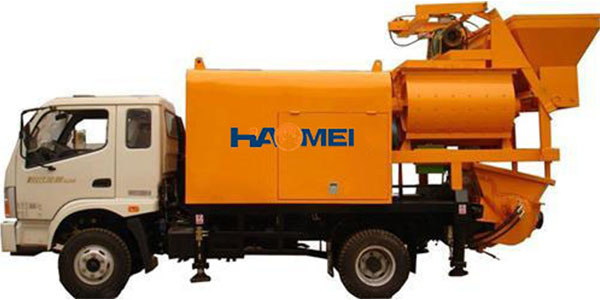

The second type of concrete mixer pump truck for sale integrates the mixing walking and pumping system on the vehicle chassis, combining the functions of loading, mixing, pumping and walking. It adopts full hydraulic transmission, with high automation, simple operation, convenient maintenance, convenient moving and transferring, and less labor required for operation. According to the structure, it can be divided into piston type, extrusion type and water pressure diaphragm type. The mixer and pump body are installed on the automobile chassis.

This is further divided into drum mixer pump truck and forced mixer pump truck. With a capacity ranging from 10 to 30m3/h, the drum mixer pump truck is very suitable for the concrete construction in rural and urban-rural areas because the drum type agitator truck mounted pump abandons the traditional manufacturing concept and adopts a new type of vehicle front towing mode, which is convenient for transportation, pipe towing and management in narrow sites. While a forced mixer truck, with larger and more efficient concrete mixer, can be used in large-scale concrete projects like rural workshop building, water conservancy ditch projects, bridges, tunnels etc.
