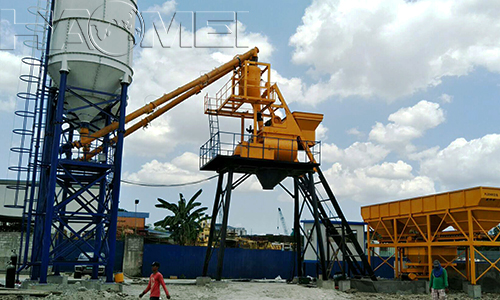

hzs75 stationary concrete batching plant configuration

The general configuration of an hzs75 stationary concrete batching plant includes a JS1500 double-shaft forced concrete mixer, a PLD2400 concrete batching machine (or PLD1600 concrete batching machine), a set of weighing system (cement weighing + water weighing + additive weighing) ), a set of conveying system (screw conveyor and bucket elevator), a control system, cement silos and gas system, etc. The automatic control system helps the plant to carry out the production procedure by one pressing of the button, and the theoretical productivity of the plant is 75 cubic meters per hour.

The list of hzs75 hzs75 stationary concrete batching plant is as followed.

The configuration of hzs75 stationary concrete batching plant is actually simpler than hzs60 plants. The main difference lies in the aggregate conveying method. An hzs60 plant is equipped with a belt conveyor, while a 75m3 plant with a bucket feeder. Therefore, an hzs75 plant requires a smaller flooring space, which can save up to one-half to two-thirds of the land occupation area compared with the conventional inclined belt conveying and loading concrete mixing plant. In addition, it takes less time to install it. It only takes a few hours to unload the steel beam of the main system from the transport vehicle, and it takes only two to four days to complete the pre-production preparation along with the installation of the control room, batching station and other supporting equipment.
